Screw Machine Length Drill Bit: 0.1693" Dia, 118 degree, Solid Carbide Bright/Uncoated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

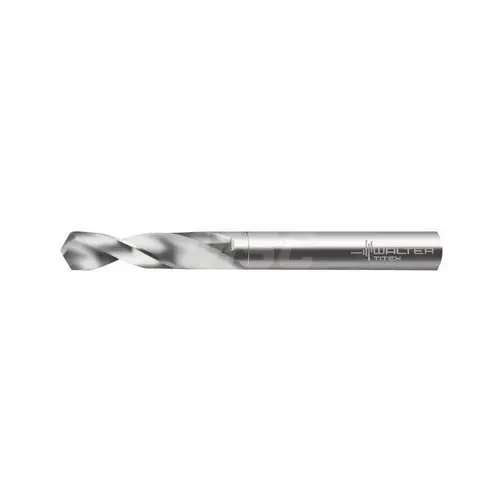

Walter-Titex 5057572 Screw Machine Length Drill Bit: 0.1693" Dia, 118 degree, Solid Carbide Bright/Uncoated

Item #: 5057572 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$58.72

/each
SAVE UP TO 5.87
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

58.00

Number of Flutes

2

Standards

DIN

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

A1163

Point Type

Form V+A

Drill Length Type

Screw Machine

Spiral Type

Regular

Coating/Finish

Bright/Uncoated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.1693

Drill Bit Size (mm)

4.30

Drill Bit Size Range (Decimal Inch)

0.1500 to 0.2000

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.9449

Flute Length (mm)

24.00

Material Grade

K30F

Maximum Drilling Depth (Decimal Inch)

0.6299

Overall Length (Decimal Inch)

2.2835

Primary Workpiece Material

Glass

Shank Diameter (mm)

4.30

Shank Length (Decimal Inch)

1.3386

Shank Length (mm)

34.00

Tool Performance

General Purpose

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

h7

Drill Bit Size Range (mm)

3.50 to 5.00

Drill Point Angle

118

Maximum Drilling Depth (mm)

16.00

Specification Designation

DIN

Specification Number

DIN 6539

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

1.29

Drill Point Length (Decimal Inch)

0.0509

Product Overview
Screw Machine Length Drill Bit: 0.1693" Dia, 118 degree, Solid Carbide Bright/Uncoated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A1163
