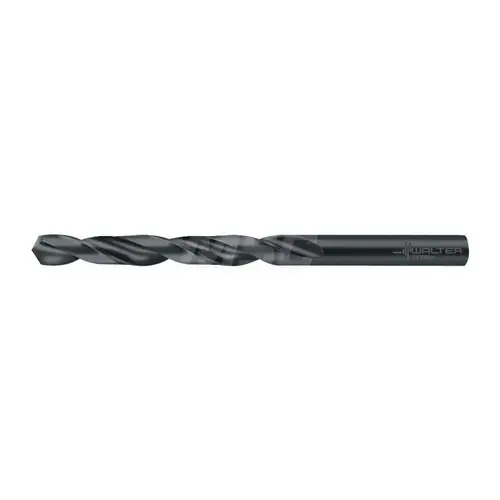

Jobber Length Drill Bit: 1.27 mm Dia, 118 degree, High Speed Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Walter-Titex 5058489 Jobber Length Drill Bit: 1.27 mm Dia, 118 degree, High Speed Steel

Item #: 5058489 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$6.07

/each
SAVE UP TO 0.61
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 18 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

38.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

A1211

Point Type

N

Drill Bit Material

High Speed Steel

Spiral Type

Regular

Tool Application

Blind Hole

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.0500

Drill Bit Size (mm)

1.27

Drill Bit Size Range (Decimal Inch)

0.0500 - 0.1000

Drill Point Angle

118 degrees

Flute By Diameter Ratio

8xD

Flute Length (Decimal Inch)

0.6299

Flute Length (mm)

16.00

Material Grade

M2

Maximum Drilling Depth (Decimal Inch)

0.5512

Overall Length (Decimal Inch)

1.4961

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.0500

Shank Diameter (mm)

1.27

Shank Length (Decimal Inch)

0.8661

Shank Length (mm)

22.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

h8

Drill Bit Finish/Coating

Bright/Uncoated

Drill Bit Size Range (mm)

0.00 - 2.00

Maximum Drilling Depth (mm)

14.00

Specification Designation

DIN

Specification Number

DIN 338

Web Configuration

Tapered

Drill Point Length (mm)

0.38

Drill Point Length (Decimal Inch)

0.0150

Product Overview
Jobber Length Drill Bit: 1.27 mm Dia, 118 degree, High Speed Steel Bright Coated, 38 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A1211
