Jobber Length Drill Bit: #72, 130 degree, Vanadium High Speed Steel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

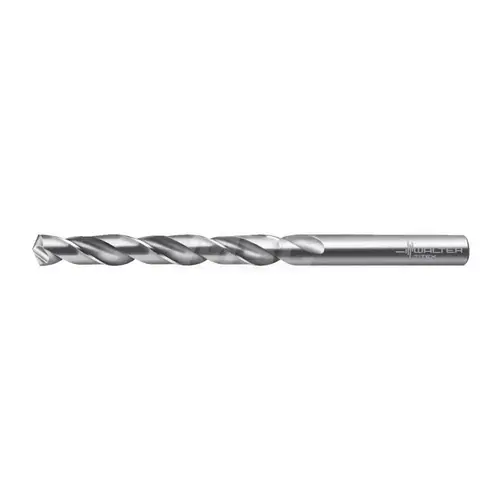

Walter-Titex 5060270 Jobber Length Drill Bit: #72, 130 degree, Vanadium High Speed Steel

Item #: 5060270 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$24.97

/each
SAVE UP TO 2.50
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 19 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

26.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

A1244

Point Type

Standard

Drill Bit Material

Vanadium High Speed Steel

Spiral Type

Regular

Tool Application

Blind Hole

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.0250

Drill Bit Size (Wire)

#72

Drill Bit Size Range (Decimal Inch)

0.0000 - 0.0500

Drill Point Angle

130 degrees

Flute By Diameter Ratio

8xD

Flute Length (mm)

8.00

Maximum Drilling Depth (Decimal Inch)

0.2720

Primary Workpiece Material

Stainless Steel

Primary Workpiece Material Code

M

Shank Diameter (Decimal Inch)

0.0250

Shank Diameter (mm)

0.63

Shank Length (Decimal Inch)

0.7090

Shank Length (mm)

18.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

h8

Drill Bit Finish/Coating

Bright/Uncoated

Maximum Drilling Depth (mm)

6.90

Specification Designation

BS

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

0.14

Drill Point Length (Decimal Inch)

0.0058

Product Overview
Jobber Length Drill Bit: #72, 130 degree, Vanadium High Speed Steel Bright Coated, 26 mm OAL, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A1244
