Taper Length Drill Bit: 0.1695" Dia, 130 degree Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

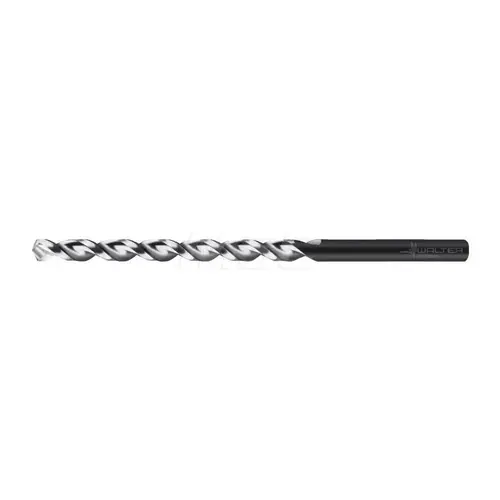

Walter-Titex 5155130 Taper Length Drill Bit: 0.1695" Dia, 130 degree Coated

Item #: 5155130 by Water-Tite

See reviewsSee reviews
See reviews summary

$26.08

/each
SAVE UP TO 2.61
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Parabolic

Material Application

Aluminum

Shank Type

Parallel

Standards

DIN 340

Tool Material

High Speed Steel

Cutting Direction

Right Hand

Series

A1522

Point Type

Standard

Spiral Type

Regular

Tool Application

Blind Hole

Coating/Finish

Coated

Coolant Through

No

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.1695

Drill Bit Size (Wire)

#18

Drill Point Angle

130 degrees

Flute Length (Inch)

3-7/32

Maximum Drilling Depth (Decimal Inch)

2.9130

Overall Length (Decimal Inch)

4-31/32

Shank Diameter (Decimal Inch)

0.1690

Shank Diameter (mm)

4.30

Shank Length (Decimal Inch)

1.7330

Shank Length (mm)

44.00

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

-0.00071 to 0.00000 in

Maximum Drilling Depth (mm)

74.00

Threaded Shank

No

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (Decimal Inch)

0.0395

Flute Length x Diameter Ratio

12xD

Product Overview
Taper Length Drill Bit: 0.1695" Dia, 130 degree Coated, RH Cut, Parabolic Flute, Parallel Shank, Series A1522
