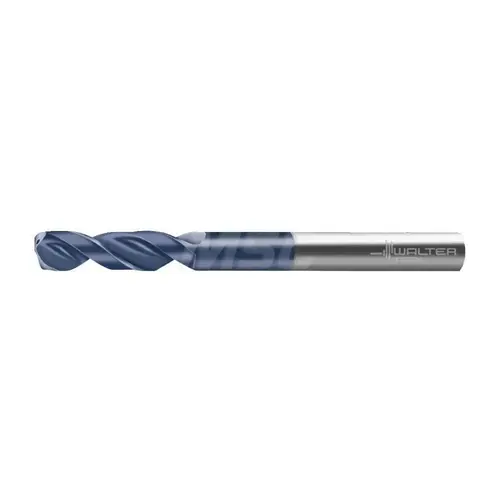

Walter-Titex 5200221 Screw Machine Length Drill Bit: 0.125" Dia, 150 degree, Solid Carbide Coated

Item #: 5200221 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$180.53

/each
SAVE UP TO 18.05
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 53 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

66.00

Number of Flutes

2

Standards

DIN

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

A6181TFT

Point Type

Form V+A

Drill Length Type

Screw Machine

Spiral Type

Regular

Coating/Finish

Coated

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.1250

Drill Bit Size (Inch)

1/8

Drill Bit Size Range (Decimal Inch)

0.1000 to 0.1500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.7874

Flute Length (mm)

20.00

Material Grade

K30F

Maximum Drilling Depth (Decimal Inch)

0.4724

Overall Length (Decimal Inch)

2.5984

Primary Workpiece Material

Cast Iron

Shank Diameter (mm)

6.00

Shank Length (Decimal Inch)

1.4173

Shank Length (mm)

36.00

Tool Performance

Universal

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

p7

Drill Point Angle

150

Maximum Drilling Depth (mm)

12.00

Specification Designation

DIN

Specification Number

DIN 6535HA

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

0.43

Drill Point Length (Decimal Inch)

0.0167

Product Overview
Screw Machine Length Drill Bit: 0.125" Dia, 150 degree, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series A6181TFT
