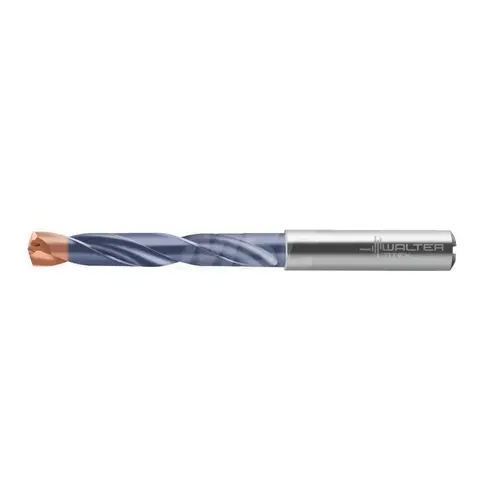

Walter-Titex 5337119 Jobber Drill: 15.50 mm Dia, 140 deg Point, Solid Carbide Double

Item #: 5337119 by Water-Tite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$812.26

/each
SAVE UP TO 81.23
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

133.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

A3389DPL

Point Type

X-treme Plus

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Blind Hole

Coating/Finish

Double

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.6102

Drill Bit Size (mm)

15.50

Drill Bit Size Range (Decimal Inch)

0.5000 - 0.6500

Drill Point Angle

140 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

3.2677

Flute Length (mm)

83.00

Material Grade

K30F

Maximum Drilling Depth (Decimal Inch)

2.4803

Overall Length (Decimal Inch)

5.2362

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

H

Shank Diameter (Decimal Inch)

0.6299

Shank Diameter (mm)

16.00

Shank Length (Decimal Inch)

1.8898

Shank Length (mm)

48.00

Tool Performance

High Performance

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Drill Bit Size Range (mm)

15.00+

Maximum Drilling Depth (mm)

63.00

Specification Designation

DIN

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

2.82

Drill Point Length (Decimal Inch)

0.1110

Product Overview
Jobber Drill: 15.50 mm Dia, 140 deg Point, Solid Carbide Double/TiAlN Coated, 133.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series A3389DPL
