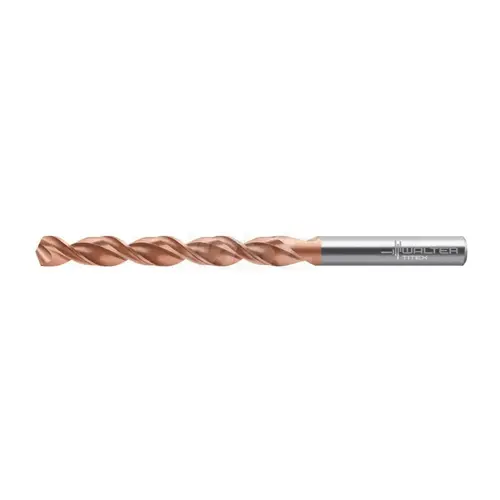

Walter-Titex 5337269 Jobber Length Drill Bit: 11/64" Dia, 130 degree, Cobalt
Item #: 5337269 by Water-Tite
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Flute Type
Parabolic
Shank Type
Straight-Cylindrical
Overall Length (mm)
80.00
Number of Flutes
2
Standards
ANSI
Cutting Direction
Right Hand
Series
A1249XPL
Point Type
UFL
Drill Bit Material
Cobalt
Tool Application
Blind Hole
Coolant Through
No
Drill Bit Size (Decimal Inch)
0.1719
Drill Bit Size (Inch)
11/64
Drill Bit Size Range (Decimal Inch)
0.1500 - 0.2000
Drill Point Angle
130 degrees
Flute By Diameter Ratio
5xD
Flute Length (Decimal Inch)
1.8504
Flute Length (mm)
47.00
Material Grade
M35
Maximum Drilling Depth (Decimal Inch)
1.5354
Overall Length (Decimal Inch)
3.1496
Primary Workpiece Material
Cast Iron
Primary Workpiece Material Code
K
Shank Diameter (Decimal Inch)
0.1719
Shank Diameter (Inch)
11/64
Shank Diameter (mm)
4.37
Shank Length (Decimal Inch)
1.2992
Shank Length (mm)
33.00
Tool Performance
High Performance
UNSPSC Code
23241634
Vendor Drop Ship
N
Drill Bit Diameter Tolerance
h8
Drill Bit Finish/Coating
AlCrN
Maximum Drilling Depth (mm)
39.00
Specification Designation
DIN
Specification Number
DIN 338
Web Configuration
Tapered
Web Thinning
Web-Thinned
Drill Point Length (mm)
1.02
Drill Point Length (Decimal Inch)
0.0401
Product Overview
Jobber Length Drill Bit: 11/64" Dia, 130 degree, Cobalt AlCrN Coated, 80 mm OAL, Right Hand Cut, Parabolic Flute, Straight-Cylindrical Shank, Series A1249XPL
