Screw Machine Length Drill Bit: 11.20 mm Dia, 140 deg Point, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

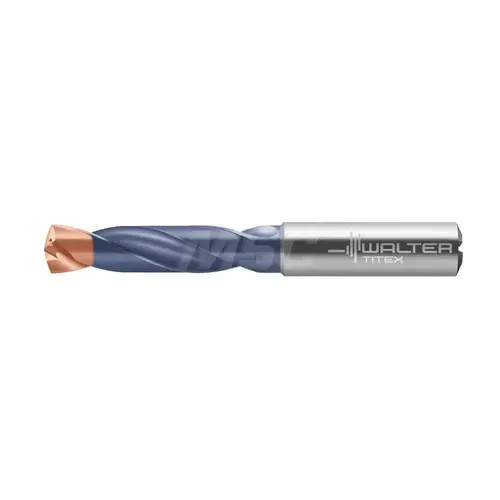

Walter-Titex 5537221 Screw Machine Length Drill Bit: 11.20 mm Dia, 140 deg Point, Solid Carbide

Item #: 5537221 by Water-Tite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$386.66

/each
SAVE UP TO 38.67
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 1 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Straight-Cylindrical

Overall Length (mm)

102

Number of Flutes

2

Standards

DIN

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

A3289DPL

Point Type

X-treme Plus

Drill Length Type

Screw Machine

Spiral Type

Regular

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.4409

Drill Bit Size (mm)

11.20

Drill Bit Size Range (Decimal Inch)

0.4000 to 0.4500

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

2.1654

Flute Length (mm)

55.00

Material Grade

K30F

Maximum Drilling Depth (Decimal Inch)

1.5748

Overall Length (Decimal Inch)

4.0158

Primary Workpiece Material

Cast Iron

Shank Diameter (Decimal Inch)

0.4724

Shank Diameter (mm)

12.00

Shank Length (Decimal Inch)

1.7717

Shank Length (mm)

45.00

Tool Performance

Universal

UNSPSC Code

23241635

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Drill Bit Size Range (mm)

11.00 - 13.50

Drill Point Angle

140

Maximum Drilling Depth (mm)

40.00

Specification Designation

DIN

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

2.04

Drill Point Length (Decimal Inch)

0.0802

Drill Tip Finish/Coating

Double Coating

Product Overview
Screw Machine Length Drill Bit: 11.20 mm Dia, 140 deg Point, Solid Carbide 102.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series A3289DPL
