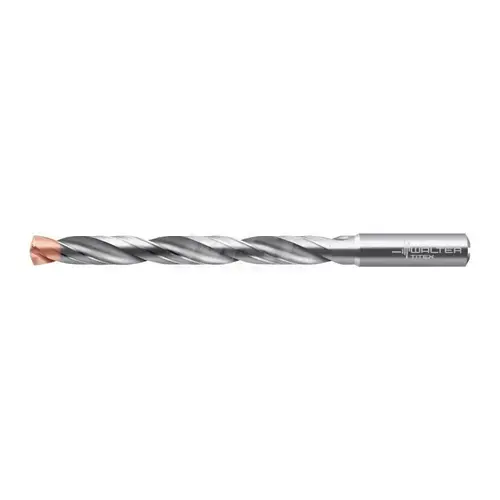

Jobber Drill: 10.30 mm Dia, 140 deg Point, Solid Carbide Double

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Walter-Titex 5834616 Jobber Drill: 10.30 mm Dia, 140 deg Point, Solid Carbide Double

Item #: 5834616 by Water-Tite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$691.68

/each
SAVE UP TO 69.17
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Drill Bit Diameter Tolerance

m7

Vendor Drop Ship

N

Web Thinning

Web-Thinned

Drill Bit Material

Solid Carbide

Specification Designation

DIN

Drill Bit Size (mm)

10.30

Drill Bit Size Range (mm)

10.00 - 12.50

Flute Length (Decimal Inch)

4.4882

Material Grade

K30F

Drill Point Angle

140 degrees

Drill Bit Size (Decimal Inch)

0.4055

Coating/Finish

Double

UNSPSC Code

23241634

Drill Point Length (Decimal Inch)

0.0738

Overall Length (mm)

163.00

Specification Number

DIN 6535HA

Number of Flutes

2

Shank Length (mm)

45.00

Drill Point Length (mm)

1.87

Standards

ANSI

Primary Workpiece Material

Cast Iron

Maximum Drilling Depth (Decimal Inch)

3.7795

Flute Type

Spiral

Shank Diameter (mm)

12.00

Overall Length (Decimal Inch)

6.4173

Coolant Through

Yes

Tool Performance

High Performance

Shank Length (Decimal Inch)

1.7717

Spiral Type

Regular

Drill Bit Size Range (Decimal Inch)

0.4000 - 0.5000

Cutting Direction

Right Hand

Maximum Drilling Depth (mm)

96.00

Flute By Diameter Ratio

8xD

Shank Diameter (Decimal Inch)

0.4724

Web Configuration

Tapered

Point Type

X-treme D

Tool Application

Blind Hole

Series

A6489DPP

Flute Length (mm)

114.00

Primary Workpiece Material Code

H

Product Overview
Jobber Drill: 10.30 mm Dia, 140 deg Point, Solid Carbide Double/TiAlN Coated, 163.00 mm OAL, Right Hand, Spiral Flute, Straight-Cylindrical Shank, Series A6489DPP
