Taper Length Drill Bit: Series A6589DPP, 3/8" Dia, 140 degree Point, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

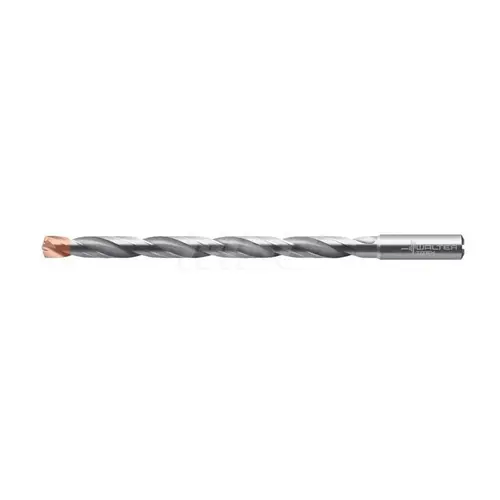

Walter-Titex 5834798 Taper Length Drill Bit: Series A6589DPP, 3/8" Dia, 140 degree Point, Solid Carbide

Item #: 5834798 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$566.56

/each
SAVE UP TO 56.66
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 9 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Spiral

Shank Type

Parallel

Overall Length (mm)

180.00mm

Standards

DIN 6535 HA

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

A6589DPP

Point Type

X-treme D

Spiral Type

Regular

Tool Application

Blind Hole

Coating/Finish

Double Point

Coolant Through

Yes

Drill Bit Size (Decimal Inch)

0.3750

Drill Bit Size (Inch)

3/8

Drill Point Angle

140 degrees

Flute Length (Decimal Inch)

5.4331

Flute Length (mm)

138.00

Material Grade

K30F

Maximum Drilling Depth (Decimal Inch)

4.8425

Shank Diameter (Decimal Inch)

0.3937

Shank Diameter (mm)

10.00mm

Shank Length (Decimal Inch)

1.5748in

Shank Length (mm)

40.00mm

UNSPSC Code

23241600

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Maximum Drilling Depth (mm)

123.00

Specification Number

DIN 6535HA

Threaded Shank

No

Web Configuration

Tapered

Web Thinning

Web-Thinned

Drill Point Length (mm)

1.73

Drill Point Length (Decimal Inch)

0.0682

Flute Length x Diameter Ratio

12xD

Product Overview
Taper Length Drill Bit: Series A6589DPP, 3/8" Dia, 140 degree Point, Solid Carbide Double Point Coated, 138 mm Flute Length, 180 mm OAL, Right Hand Cut, Spiral Flute, Parallel Shank
