Jobber Drill: 0.5630" Dia, 140 deg Point, Solid Carbide TiNAl

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

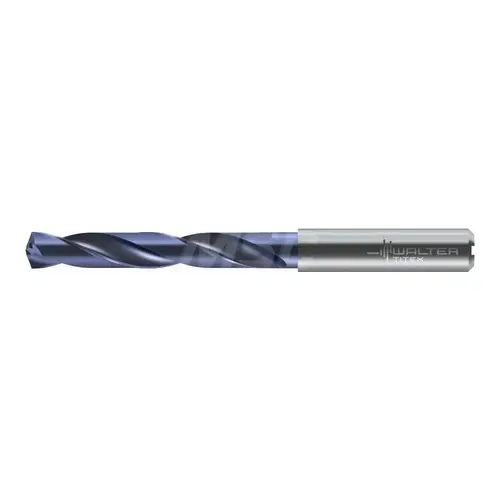

Walter-Titex 6618438 Jobber Drill: 0.5630" Dia, 140 deg Point, Solid Carbide TiNAl

Item #: 6618438 by Water-Tite

See reviewsSee reviews
See reviews summary
In Stock

$423.06

/each
SAVE UP TO 42.31
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 14 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Flute Type

Regular Spiral

Shank Type

Whistle Notch

Overall Length (mm)

133.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

DC150

Point Type

Proprietary

Drill Bit Material

Solid Carbide

Spiral Type

Regular

Tool Application

Blind Hole

Coating/Finish

TiNAl

Coolant Through

Yes

Drill Bit Grade

High Performance

Drill Bit Size (Decimal Inch)

0.5630

Drill Bit Size (mm)

14.30

Drill Point Angle

140 degrees

Flute By Diameter Ratio

5xD

Flute Length (Decimal Inch)

2.8150

Flute Length (mm)

71.50

Maximum Drilling Depth (Decimal Inch)

2.8150

Overall Length (Decimal Inch)

5.2362

Primary Workpiece Material

Steel

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.6300

Shank Diameter (mm)

16

Shank Length (Decimal Inch)

1.8898

Shank Length (mm)

48

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Maximum Drilling Depth (mm)

71.50

Drill Point Length (mm)

2.60

Drill Point Length (Decimal Inch)

0.1020

Product Overview
Jobber Drill: 0.5630" Dia, 140 deg Point, Solid Carbide TiAlN Coated, 133.00 mm OAL, Right Hand, Spiral Flute, Whistle Notch Shank, Series DC150
