Jobber Length Drill Bit: 9/16" Dia, 140 degree, Solid Carbide

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

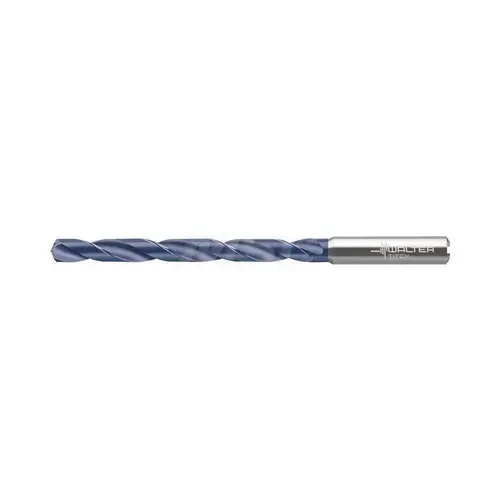

Walter-Titex 6618732 Jobber Length Drill Bit: 9/16" Dia, 140 degree, Solid Carbide

Item #: 6618732 by Water-Tite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$631.14

/each
SAVE UP TO 63.11
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 3 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Overall Length (mm)

204.00

Number of Flutes

2

Standards

ANSI

Cutting Direction

Right Hand

Series

DC150-08-A1

Drill Bit Material

Solid Carbide

Tool Application

Blind Hole

Coolant Through

Yes

Drill Bit Grade

WJ30TA

Drill Bit Size (Decimal Inch)

0.5625

Drill Bit Size (Inch)

9/16

Drill Bit Size (mm)

14.29

Drill Bit Size Range (Decimal Inch)

0.5000 - 0.6500

Drill Point Angle

140 degrees

Flute By Diameter Ratio

8xD

Flute Length (Decimal Inch)

5.9840

Flute Length (mm)

152.00

Maximum Drilling Depth (Decimal Inch)

5.3540

Overall Length (Decimal Inch)

8.0310

Primary Workpiece Material

Cast Iron

Primary Workpiece Material Code

K

Shank Diameter (Decimal Inch)

0.6300

Shank Diameter (mm)

16.00

Shank Length (Decimal Inch)

1.8900

Shank Length (mm)

48.00

UNSPSC Code

23241634

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Drill Bit Finish/Coating

TiNAl

Drill Bit Size Range (mm)

12.50 - 15.00

Maximum Drilling Depth (mm)

136.00

Drill Point Length (mm)

2.60

Drill Point Length (Decimal Inch)

0.1020

Product Overview
Jobber Length Drill Bit: 9/16" Dia, 140 degree, Solid Carbide TiNAl Coated, 204 mm OAL, Right Hand Cut, Straight-Cylindrical Shank, Series DC150-08-A1
