Screw Machine Length Drill Bit: 0.0591" Dia, 140 degree, Solid Carbide Coated

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

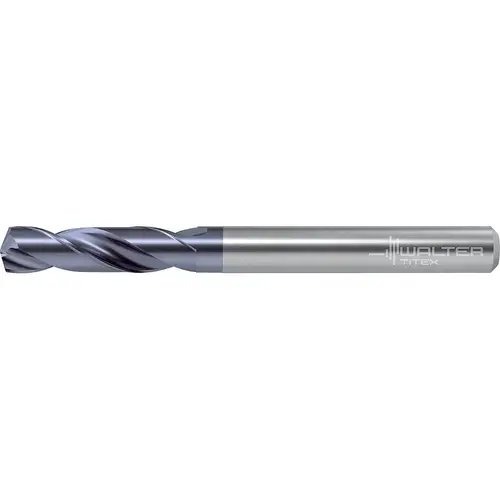

Walter-Titex 7781104 Screw Machine Length Drill Bit: 0.0591" Dia, 140 degree, Solid Carbide Coated

Item #: 7781104 by Water-Tite

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$61.78

/each
SAVE UP TO 6.18
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 4 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shank Type

Straight-Cylindrical

Overall Length (mm)

32.0000

Number of Flutes

2

Standards

DIN

Tool Material

Solid Carbide

Cutting Direction

Right Hand

Series

DC160-03-F1

Drill Length Type

Screw Machine

Coating/Finish

Coated

Coolant Through

No

Drill Bit Size (Decimal Inch)

0.0591

Drill Bit Size (mm)

1.50

Drill Bit Size Range (Decimal Inch)

0.0000 to 0.1000

Flute By Diameter Ratio

3xD

Flute Length (Decimal Inch)

0.3540

Flute Length (mm)

9.00

Material Grade

WJ30RE

Maximum Drilling Depth (Decimal Inch)

0.2360

Overall Length (Decimal Inch)

1.26000

Primary Workpiece Material

Cast Iron

Tool Performance

Universal Advance

Vendor Drop Ship

N

Drill Bit Diameter Tolerance

m7

Drill Bit Size Range (mm)

0.00 to 3.50

Drill Point Angle

140

Maximum Drilling Depth (mm)

6.00

Drill Point Length (mm)

0.27

Drill Point Length (Decimal Inch)

0.0110

Product Overview
Screw Machine Length Drill Bit: 0.0591" Dia, 140 degree, Solid Carbide Coated, Right Hand Cut, Straight-Cylindrical Shank, Series DC160-03-F1
