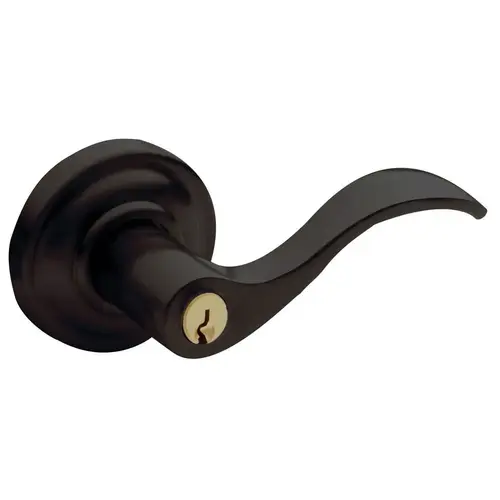

Baldwin 5255102RENT Estate Wave Lever w/Classic Rose Oil Rubbed Bronze
Item #: 5255102RENT by Baldwin
UPC #: 723079141305
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 5255 Wave Lever, Right Handed Keyed Entry Set With Classic Rose
- Rose Designed To Conceal 2-1/8" Bore
- Concealed Mounting System
- Emergency Exit Function
- Limited Lifetime Mechanical Warranty and No Finish Warranty
Handing
RH
Material
Brass
Product Class
Residential
Latch Faceplate
Square Corner
Style
Transitional
Theme
Transitional
Shape
Wave
Keyway
Schlage C
Function
RENT-Right Hand-Keyed Entry-Emergency Exit
Collection
Estate
Concealed Screws
Yes
Cylinder
5 Pin C
Locking Mechanism
Thumbturn
Trim Height
2.62
Handle Projection
2.81
Solid Construction
Solid Brass
Trim Width
2.62
Series
5200 Series
Configuration
Door Lever Set
Door Thickness
1-3/8" to 1-3/4"
Rosette Shape
Round
Handle Length
4
Backset
2-3/8 Inch or 2-3/4 Inch
Strike
T-Strike, 1-1/8 Inch x 2-3/4 Inch, 1-1/4 Inch Lip, Sq Corner
Cylinder Type
Conventional Cylinder
Finish Description
Oil Rubbed Bronze
Lever Style
5255-Wave
Keyblank Grouping
BALD-SCHL-C-5-1
Rose/Escutcheon Trim
Classic-Round Rose
Product Type
Cylindrical Lock
Finish
Oil Rubbed Bronze
Grade
ANSI/BHMA Grade 2
Product Height
2-5/8 Inches
Included Components
(1) Pre-Configured Keyed Entry Lever Set
Projection
2.6500
Keying Charges
Residential-Conventional
Product Material
Forged Brass
Warranty
Lifetime limited mechanical and finish
Color Code
102 Inch (8 Foot 6 Inch)
Hand
Right Hand
Strike Type
T-Strike
ADA Compliant
YES
Finish Family
Dark Bronze
Strike Size
1-1/8 x 2-3/4 Inch
Door Cross Bore
2.125 Inch
Standards
ANSI/BHMA Grade 2
Function Description
Both sides locked or unlocked by key outside or push button inside
Function Family
Entry/Entrance/Office
Product Projection
2.6500 Inch
Manufacturer Parent
Spectrum
Box Dimensions (L x W x H)
7 x 7 x 4
Sub-Series
RL_Lever_Locksets_Baldwin_68
No Of Pins
5 Pin Cylinder
No of inners
1
Lever Knob Design
5255 Lever
Latch Faceplate Dimension
1" x 2-1/4"
Design
Wave Lever
Finish code
102
Cross Bore Size
2-1/8" Bore
Strike Dimension
1-5/8" x 2-1/4"
Hazardous Material
No
Door Range
1-3/8" to 1-3/4"
Rose/Escutcheon Design
Classic Rose
Manufacturer Warranty
Limited Lifetime Mechanical Warranty and No Finish Warranty
Dimension
4" Lever Length, 2-4/5" Projection, 2-16/25" Diameter Rosette
Product Overview
Lever Lock With Classic Round Rose Keyed Entry, 102 Oil Rubbed Bronze, Right Hand, Emergency Exit
