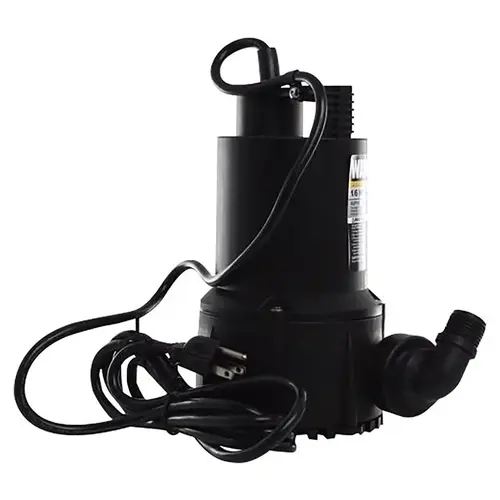

Wayne VIP15 Submersible Utility Pump, 1-Phase, 6.2 A, 120 V, 0.2 hp, 1-1/4 in Outlet, 2050 gph, Thermoplastic Impeller
Item #: VIP15 by WAYNE Water Systems
UPC #: 040066218995
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Bottom suction design filters debris and removes water down to 1/8 in of surface
- Submersible reinforced sealed thermoplastic construction
- 1-1/4 in discharge with 3/4 in garden hose adapter
- Non-clogging reinforced thermoplastic submersible utility pump
- Passes up-to 1/2 in solids
- 2-5/8 in minimum depth to start operation
- Corrosion resistant
- Easy carry handle for portability
- High performance 1/5 hp motor with thermal protection
Height
11"
Volts
115 V
Depth
6.8"
Width
6.8"
Horsepower
1/5 HP
Powered By
AC
Maximum Temperature
110 °F
Self Priming
Self-Priming
Hardware Included
Yes
Intake
Bottom
Agency Compliance
CSA and UL
Corrosion Resistant
Yes
Defective Code
A
Discharge Flow at 10 ft.
1350 gph
Discharge Flow at 20 ft.
880 gph
Discharge Pipe Size
3/4"
Each Weight
7.340 LB
Hazardous Material
No
Maximum Discharge Flow
2050 gph
Maximum Feet of Head
15 ft.
Minimum Temperature
40 °F
On/Off Operations
Manual
Pump Switch Type
Switchless Switch
Returnable
Yes
Velocity
N
Housing Material
Thermoplastic
Product Type
Utility Pump
Inlet Connection Size
1/2"
Overall Width
6.8"
Outlet Connection Size
1-1/4"
Overall Height
11"
Impeller Type
Thermoplastic
Cord Length
8 ft
Frequency Rating
60 Hz
Current Rating
6.2 A
HP Rating
1/3 hp
Overall Length
6.8"
Maximum Liquid Temperature
120 deg F
Nomenclature
VIP30 UT PUMP 1/3HP
Material
Thermoplastic
Discharge Head
15 ft
Number of Phases
1
AMPS
15 amps
Weight
8 lbs.
Warranty
1 year Limited Parts and Labor
Motor Type
Single Phase
Discharge Flow at 15 ft.
1080 gph
Impeller
Vortex
Power Cord
8 ft.
Discharge Flow at 5 ft.
1740 gph.
Product Overview
PUMP UTILITY SUB 1/5HP
This portable, submersible utility pump is designed and intended for non-automatic use in water. The units are equipped with an 8 ft, 3-prong grounding type power cord. The motor is oil filled and sealed for cooler running and designed to operate under water. The non-clogging impeller design minimizes debris from stopping the pump. The elbow fitting allows convenient discharge through a garden hose.
