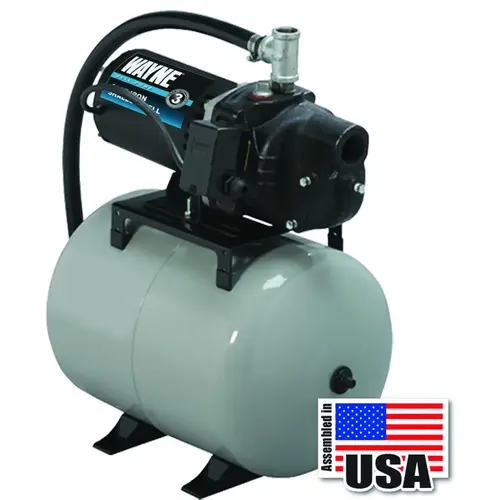

Wayne SWS50-8.5FX Jet Pump, 120/240 V, 0.5 hp, 1-1/4 in Suction, 3/4 in Discharge Connection, 25 ft Max Head, 420 gph
Item #: SWS50-8.5FX by WAYNE PUMPS
UPC #: 040066203557
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Dual voltage (120/240 V) high efficiency square flange motor (factory set for 240 V)
- Pressure switch pre-wired with 30-50 psi pressure setting
- Durable cast iron volute with dedicated priming port for volute filling
- For wells 0 - 25 ft in depth
Maximum Head
25 ft
Connection Size
1-1/4 in Suction 3/4 in Discharge
Number of Stages
1
Frequency Rating
60 Hz
Connection Type
NPT
HP Rating
0.5 hp
Pressure rating
50 psi
Nomenclature
SWS50-8.5FX PRECHARG TANK1/2HP
Material
Iron
Motor Type
Dual Voltage
Product Overview
TANK PRECHARGED 1/2HP 8.5GAL
Specifications:
Specifications:
Includes: 30 to 50 psi Pre-Set Pressure Switch
Suitable for: 0 to 25 ft Depth Shallow Wells
Shallow well jet pumps are single-stage domestic water pumps designed for pumping portable water in applications where the water is located less than 25 ft vertically from the pump. A pressure switch is a standard feature. The shallow well pump can be mounted to either a pre-charged, conventional type or free-standing pressure tank.
