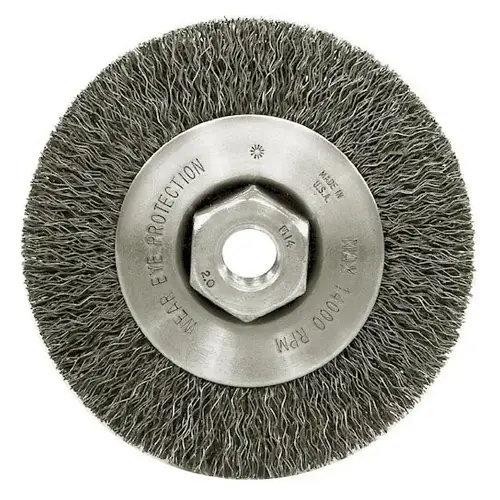

Weiler 13078 Steel Wheel Brush 0.014" Bristle Diameter - Arbor Attachment - 4" Outside Diameter
Item #: 13078 by Weiler
UPC #: 012382130787
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Overall Length
3.95"
Maximum RPM
14000
Outside Diameter
4"
Disc Diameter
4"
Wheel Diameter
4"
Attachment Type
Arbor
Center Hole Size (in)
3/8"-24 UNF
Bristle Diameter
0.014"
Brush Width
4"
Face Thickness
1/2"
Trim Length
7/8"
Center Hole Thread Size
3/8-24 UNF
Product Overview
Weiler steel wheel brush is measured using outside diameter (OD), with the OD being 4 in. The arbor attachment allows for easy mounting to the tool or pad. This Weiler part uses steel for the bristles which are 0.014 in diameter. All abrasive products that rotate or spin, such as the ones in this category, have a maximum speed at which you can run them. This Weiler wheel brush can be run at a maximum speed of 14000 RPMs.
Specifications:
Specification parameters description:
Maximum RPM:
The maximum rotations per minute (RPM) a product is designed to be used at should be respected for the sake of safety and use life. Maximum RPM is provided for all product listings where applicable and is often printed on the item in the case of discs and wheels. Operating a wheel above its maximum recommended speed can cause a wheel to crack or even shatter.
Trim Length:
Trim length, also called bristle length, is the length brush filaments are exposed beyond the brush hub.
Bristle Material:
Metal wire brushes can be carbon steel, stainless steel, brass, or bronze. Generally, brass and bronze filaments are softer and are used for softer materials (e.g., rubber or aluminum), while carbon and stainless steel are more aggressive. Nylon abrasive brushes can be impregnated with aluminum oxide, silicon carbide, CBN, or diamond. Of these, CBN and diamond are the most aggressive.
Specifications:
Material Compatibility: Steel
Specification parameters description:
Maximum RPM:
The maximum rotations per minute (RPM) a product is designed to be used at should be respected for the sake of safety and use life. Maximum RPM is provided for all product listings where applicable and is often printed on the item in the case of discs and wheels. Operating a wheel above its maximum recommended speed can cause a wheel to crack or even shatter.
Trim Length:
Trim length, also called bristle length, is the length brush filaments are exposed beyond the brush hub.
Bristle Material:
Metal wire brushes can be carbon steel, stainless steel, brass, or bronze. Generally, brass and bronze filaments are softer and are used for softer materials (e.g., rubber or aluminum), while carbon and stainless steel are more aggressive. Nylon abrasive brushes can be impregnated with aluminum oxide, silicon carbide, CBN, or diamond. Of these, CBN and diamond are the most aggressive.
