CRL  White 135 Degree "Sleeve Over" Glass Clamp
Qty
+
$29.90   /each

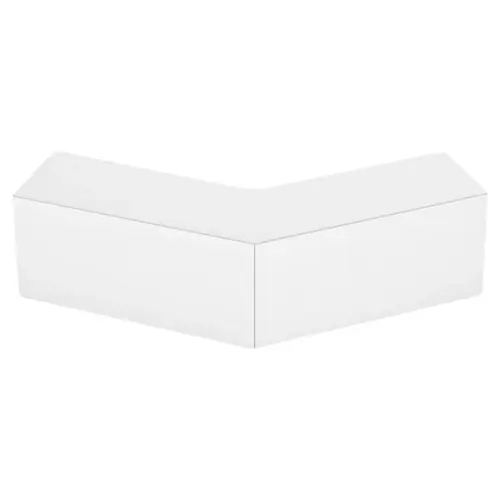

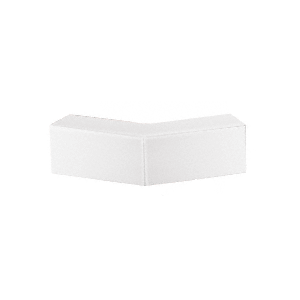

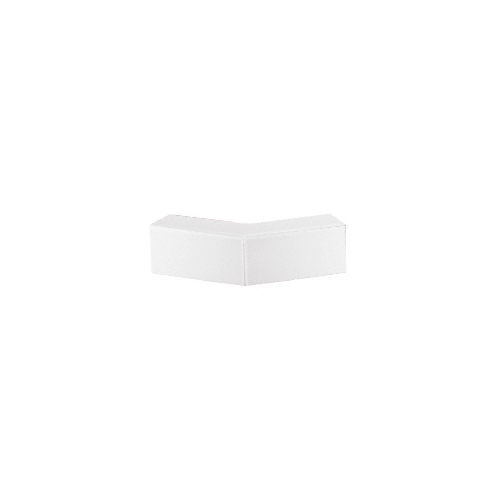

CRL S0GC135W White 135 Degree "Sleeve Over" Glass Clamp

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Solid Brass
  • Use Monolithic Tempered Glass
  • Assists With Shear Forces
  • Holds Glass Panels in Position While Sealant Cures
See Full Product Description
SALE

$29.90 /each

Qty

In stock
Quick Shipping

Usually ships in 1 business day*

SALE
+
In stock Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Solid Brass
  • Use Monolithic Tempered Glass
  • Assists With Shear Forces
  • Holds Glass Panels in Position While Sealant Cures

  • Product Description
  • Technical Details 4
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

Height

1 in (25 mm)

Minimum Order

1 Each

Finish

White

Width Each Leg

2-1/16 in (52 mm)

Type

135 Degree

  • For 5/16" to 1/2" (8 to 12 mm) Thick Glass
  • Solid Brass
  • Use Monolithic Tempered Glass
  • Assists With Shear Forces
  • Holds Glass Panels in Position While Sealant Cures
CRL Sleeve Over Glass Clamps are designed to provide a mechanical fastener to cover the shear forces placed on the glass panels. No special fabrication of the glass is required. Can also be used to secure the glass panels in position while the applied silicone sealant in the joint cures (the silicone sealant glues the glass panels together, prevents water leakage, and provides the pull strength to keep the panels from separating). Clamps are secured in place by nylon tipped Allen set screws.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
No Glass Fabrication Required (Clamps tighten using nylon tipped Allen screws).
Includes: Gaskets
NOTE: These Clamps are not designed to take the place of Headers or a Support Bar. Contact CRL Frameless Shower Technical Sales Department for more details. Can be used on both square cut or mitered panels. Important Notes: These Clamps are not designed to take the place of Headers or a Support Bar.
