Grooving Inserts; Insert Style: NGD-K ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.1250 ; Cutting Width (mm): 3.180 ; Insert Hand: Right Hand ; Maximum Depth of Cut (Decimal Inch): 0.2500 TiAlN

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

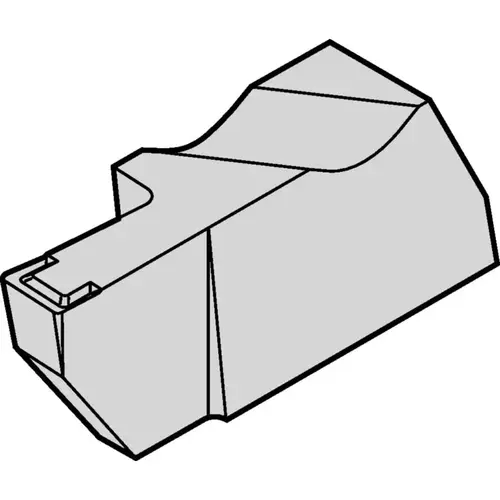

Widia 3607088 Grooving Inserts; Insert Style: NGD-K ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.1250 ; Cutting Width (mm): 3.180 ; Insert Hand: Right Hand ; Maximum Depth of Cut (Decimal Inch): 0.2500 TiAlN

Item #: 3607088 by Widia

See reviewsSee reviews
See reviews summary
In Stock

$28.12

/each
SAVE UP TO 2.81

Buying in bulk

QUICK SHIPPING*Usually ships in 1 business dayIn stock: 40 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Large Order Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Insert Material

Carbide

Corner Radius (mm)

0.19

Vendor Drop Ship

N

Cutting Width (Decimal Inch)

0.1250

Maximum Corner Radius (Decimal Inch)

0.0075

Maximum Depth of Cut (Decimal Inch)

0.2500

Maximum Depth of Cut (mm)

6.35

Iso Code

NGD3125RK

Insert Seat Size

3

For Use With

Grooving

Rake

Positive

Groove Width (mm)

3.18

Cutting Height (Inch)

1/4

Insert Holding Method

Clamp

Coating/Finish

TiAlN

Rake Angle

10.000

UNSPSC Code

23242105

Insert Style

NGD-K

Manufacturers Catalog Number

NGD3125RK

Minimum Insert Width (mm)

3.00

Insert Hand

Right Hand

Maximum Groove Width (mm)

3.18

Type

Top Notch Grooving Insert

Manufacturer Grade

TN6010

Lead Angle

0.000

Style

Top Notch Grooving Insert

Minimum Groove Width (mm)

3.18

Coating Process

PVD

Primary Workpiece Material

Stainless Steel

Corner Radius (Decimal Inch)

0.0075

Hole Diameter (Decimal Inch)

0.0000

Chip Breaker

K

Cutting Width (Inch)

1/8

Overall Length (Decimal Inch)

0.9860

Maximum Depth of Cut (Inch)

1/4

Cutting Width (mm)

3.180

Multi-use Tool

Yes

Full Radius

No

Coating Classification

PVD

Insert Size Code

3

Number of Cutting Edges

1

ANSI Code

NGD3125RK

Series

NGD-K

Single Or Double End

Single

Hole Diameter (Mm) ( - 0 Decimals)

0.0000

Primary Workpiece Material Code

M

Product Overview
Grooving Inserts; Insert Style: NGD-K ; Insert Size Code: 3 ; Cutting Width (Decimal Inch): 0.1250 ; Cutting Width (mm): 3.180 ; Insert Hand: Right Hand ; Maximum Depth of Cut (Decimal Inch): 0.2500
