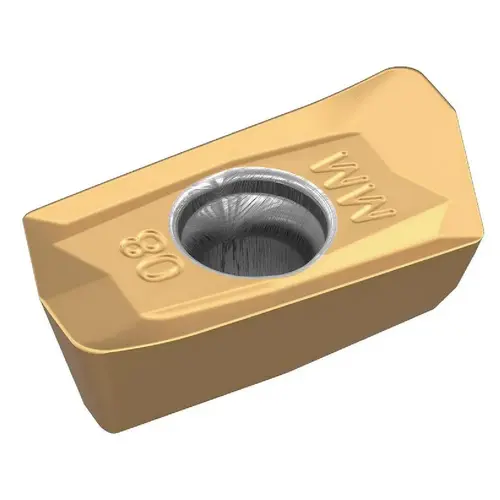

Widia 5415319 Milling Insert: XDPT110408PDSRMM, WP25PM, Carbide AlTiN
Item #: 5415319 by Widia
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Stainless Steel
ANSI Code
XDPT1102SRMM
Number of Cutting Edges
2
Standards
ANSI
Insert Material
Solid Carbide
Series
VSM11
Coating Process
PVD
Coating/Finish
AlTiN
Corner Radius (Decimal Inch)
0.0310
Length (Decimal Inch - 4 Decimals)
0.5315
Length (Inch)
17/32
Manufacturers Catalog Number
XDPT1102SRMM
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1628
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.2714
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.4626
Multi-use Tool
Yes
Rake
Positive
Secondary Workpiece Material
Cast Iron
Insert Hand
Right Hand
Inscribed Circle (Decimal Inch)
0.2714
Corner Radius (Inch)
1/32
Insert Shape
Parallelogram
Chip Breaker
MM
Secondary Workpiece Material Code
K
Insert Style
XDPT
Insert Size Code
1102
Hole Diameter (Decimal Inch)
0.1181
Relief Angle
15.00
Included Angle Degree
75
Hole Diameter (Mm) ( - 0 Decimals)
0.12
Manufacturer Grade
WP25PM
Single or Double Sided Insert
Single
Cutter Series Compatibility
VSM11
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.1500 to 0.1750
Iso Code
XDPT110408PDSRMM
Product Overview
Milling Insert: XDPT110408PDSRMM, WP25PM, Carbide AlTiN Coated, 0.1628" Thick, 0.2714" Wide
