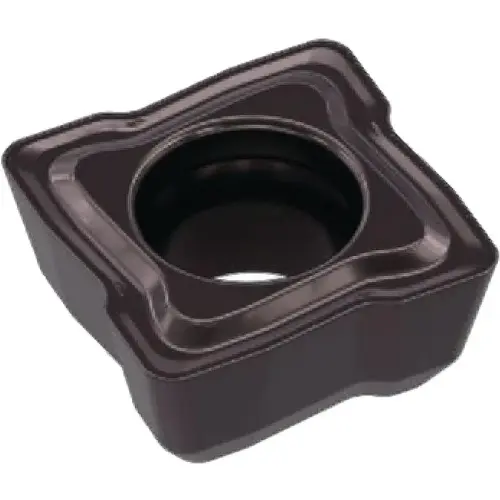

Widia 5542600 Indexable Drill Insert: TCF150512V34 WU40PH, Carbide TiAlN

Item #: 5542600 by Widia

See reviewsSee reviews
See reviews summary
In Stock

$27.34

/each
SAVE UP TO 2.73
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 5 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Shape

Irregular

Hole Diameter

0.2362in

ANSI Code

TCF150512GPV34

Number of Cutting Edges

4

Chipbreaker

V34

Insert Material

Carbide

Series

TCF

Coating Process

PVD

Coating/Finish

TiAlN

Corner Radius (Decimal Inch)

0.0472

Length (Decimal Inch - 4 Decimals)

0.6339

Primary Workpiece Material

Steel

Primary Workpiece Material Code

P

Thickness (Decimal Inch - 4 Decimals)

0.2126

UNSPSC Code

23242105

Vendor Drop Ship

N

Width (Decimal Inch - 4 Decimals)

0.6339

Rake

Positive

Insert Hand

Neutral

Inscribed Circle (Decimal Inch)

0.5957

Corner Radius (Inch)

3/64

Insert Style

TCF

Insert Size Code

150512

Relief Angle

11

Included Angle Degree

90

Compatible Drill Style

TCF

Manufacturer Grade

WU40PH

Iso Code

TCF150512GPV34

Product Overview
Indexable Drill Insert: TCF150512V34 WU40PH, Carbide TiN;TiAlN Coated, 0.5957" Inscribed Circle, 0.2126" Thick, 3/64" Corner Radius, 90 degree Irregular Shape
