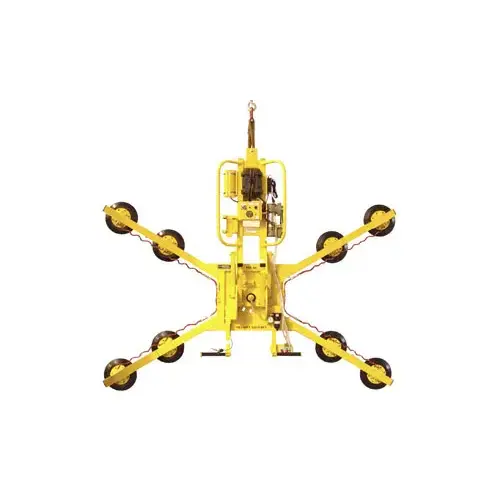

CRL MRTA811LDC Wood's 1,400 Pound High-Flow DC Quadra - Tilt Rotator
Item #: MRTA811LDC by Wood's Powr-Grip
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- Eight 11" (280 mm) Diameter Cups
- Load Capacity 1,400 Lbs. (635 kg)
- Load Movement is 360 Degrees Edgewise With Automatic Locking at Each 1/4 Revolution, Assisted Manual Tilt is 90 Degrees Between Upright and Flat
- Unique Four-Bar Tilt Mechanism
Pad Spread Size
49" x 72-1/2" (1244 x 1841 mm)
Load Capacity
1400 lbs. (635 kg)
Extended Pad Spread
69" x 107-1/4" (1752 x 2724 mm)
Standard Pad Spread
49" x 72-1/2" (1244 x 1841 mm)
F.O.B
Laurel, MT.
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Type
DC
These units also feature 360 degree manual rotation, removable pads and extension arms that accommodate a variety of load sizes and shapes.
Standard Pad Spread: CAT. NO. MRTA8HV11DC
48" x 71-1/2" (1.22 x 1.82 m basic configuration)
35-1/2" x 49-3/4" (902 mm x 1.26 m small configuration)
122" x 12-3/4" (3.10 m x 324 mm linear configuration)
68" x 106-1/4" (1.73 x 2.70 m extended configuration)
Standard Pad Spread: CAT. NOs. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC Add 1" (25 mm) to each dimension listed above.
Number/Size of Pads:
CAT. NO. MRTA8HV11DC: 8/10" (254 mm) Diameter Lipped
CAT. NO. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC:
8/11" (280 mm) Diameter Lipped
Lifting Capacity:
CAT. NO. MRTA8HV11DC: 1,200 Lbs. (545 kg)
CAT. NO. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC:
1,400 Lbs. (635 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces). Capacity reduced in this configuration.
Average Unit Weight: 302 Lbs. (137 kg)
Standard Operating Power: 12V DC, 26 AMP
Load Movement: Manual rotation, 360 degrees edgewise, with automatic locking at each 1/4 revolution. Assisted manual tilt, 90 degrees between upright and flat.
Standard features:
Low Vacuum Warning Light
On-board Battery and Charger
Battery Energy Gauge
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-Mounted Pads
(Re)movable Pad Mounts
Extension Arms
Blow-off for Quick Release
Available Options:
For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
