CRL  Wood's Manual Rotator/Tilter Lifter Options
Qty
+
$1,503.44   /each

CRL LB6AL0 Wood's Manual Rotator/Tilter Lifter Options

  • Adaptable Length Lift Bar
  • Designed for Applications Requiring Increased Horizontal Reach
  • Works with Manual Rotators and Tilters
See Full Product Description

Additional options:

SALE

$1,503.44 /each

Qty

Quick Shipping

Usually ships in 1 business day*

Additional options:

SALE
+
Quick Shipping

Usually ships in 1 business day*

Have a Question?

Chat with our Expert


Description

  • Adaptable Length Lift Bar
  • Designed for Applications Requiring Increased Horizontal Reach
  • Works with Manual Rotators and Tilters

  • Product Description
  • Technical Details 1
  • Product Reviews 1
  • Product Q&A 1
  • Large Order Quote
  • Shipping / Return Policy

Product Description

F.O.B

Laurel, MT.

Horizontal Reach Increase

7-5/8 in (193 mm)

WARNING

This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

  • Adaptable Length Lift Bar
  • Designed for Applications Requiring Increased Horizontal Reach
  • Works with Manual Rotators and Tilters

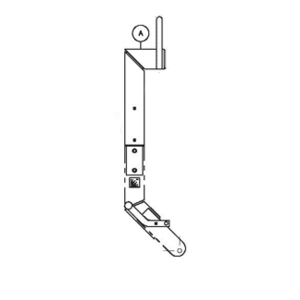

This Adaptable Length Lift Bar is designed for applications requiring increased horizontal reach at the hook point, or applications involving minimal clearance between the Lifter and the hoisting equipment, such as installations under eaves or similar handling situations.
Overhead Clearance Reduction: 11-3/4" (298 mm) with Shortened Configurations (C or D)
Horizontal Reach Increase: 7-5/8" (194 mm) with Reversed Bail Configurations (B or D)
Maximum Load Capacity*:
A) Standard Configuration: 700 lbs. (320 kg)
B) Reversed Bail Configuration: 600 Lbs. (270 kg)
C) Shortened Configuration: 650 Lbs. (295 kg)
D) Shortened, Reversed Bail Configuration: 500 Lbs. (225 kg)
*Net capacity cannot exceed standard lifter capacity. Important Notes: Net capacity cannot exceed standard lifter capacity.
