This CRL Wood's Powr-Grip 2 Pad Quadra Tilt Lifter features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 11" x 24" (280 x 610 mm)
Number/Size of Pads: 2/10" (254 mm) Diameter Lipped
Lifting Capacity: 300 Lbs. (135 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Unit Weight: 45 Lbs. (21 kg)
Standard Operating Power: 120V AC, 60 hertz, 3 AMP (240V AC, 50/60 Hertz, 2 AMP also available)
Apply: 2 sec. Release: 2 sec. (approx.)
Load Movement: Assisted Manual Tilt, 90 Degrees Between Upright and Flat
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Twist-Lock Electrical Plug
Blow-Off for Quick Release
Alternative Power Systems:
DC Power System CAT. NO. MTA2HV11DCS
Air (Venturi) Power System CAT. NO. MTA2HV11A1R
Available Options:
G-Force Hoist Control CAT. NO. 1H0HGP
Vacuum Loss Warning Buzzer CAT. NO. E03VLW
Closed Cell Foam Pad Rings CAT. NO. FRHV11
Voltage Adaptation CAT. NO. E06VA
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

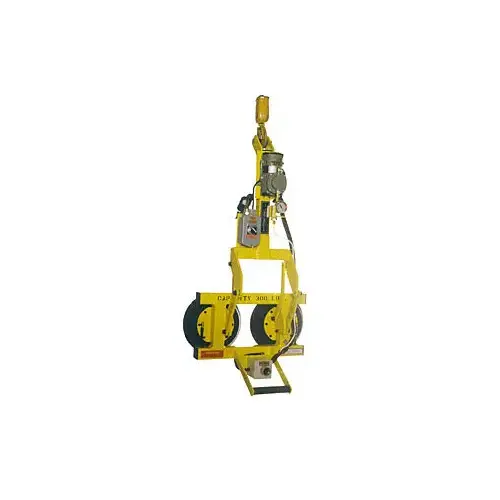

CRL MTA2HV11AC Wood's Powr-Grip 2 Pad Quadra Tilt Lifter
Item #: MTA2HV11AC by Wood's Powr-Grip
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 300 Lbs. (135 kg) Lifting Capacity
- Automatically Maintains the Load Position without Using Latches
- Reduces Hazards of Lifting Loads from Upright Racks
Lifting Capacity
300 pounds (135 kilograms)
Pad Spread Size
11 x 24
Standard Pad Spread
11 x 24 inch (279 x 610 millimeter)
F.O.B
Laurel, MT.
Load Movement
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Type
AC
Configuration
Quadra Tilt Lifter
Pad Diameter
10
Pad Quantity
2
Lifter Weight - AC Power
300 Lbs.
Power
AC
Load Capacity
300 lbs. (136 kg)
Product Overview
This CRL Wood's Powr-Grip 2 Pad Quadra Tilt Lifter features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread: 11" x 24" (280 x 610 mm)
Number/Size of Pads: 2/10" (254 mm) Diameter Lipped
Lifting Capacity: 300 Lbs. (135 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Unit Weight: 45 Lbs. (21 kg)
Standard Operating Power: 120V AC, 60 hertz, 3 AMP (240V AC, 50/60 Hertz, 2 AMP also available)
Apply: 2 sec. Release: 2 sec. (approx.)
Load Movement: Assisted Manual Tilt, 90 Degrees Between Upright and Flat
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Twist-Lock Electrical Plug
Blow-Off for Quick Release
Alternative Power Systems:
Available Options:
