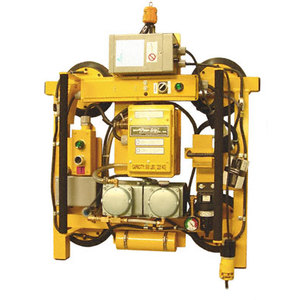

CRL VLPL49A1RS Wood's Powr-Grip 500 Pound Manual Rotator
Item #: VLPL49A1RS by Wood's Powr-Grip
$9,869.99 /each
Buying in bulk
Roll over image to zoom in
CRL VLPL49A1RS Wood's Powr-Grip 500 Pound Manual Rotator
Item #: VLPL49A1RS by Wood's Powr-Grip
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 360 Degree Continuous Edgewise Rotation
- Economical Lifter for Production Line Use
- Excellent Choice for Edger and Beveller Users
Pad Spread Size
30 X 24
Load Capacity
500 Lb (225 kg)
F.O.B
Laurel, MT.
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Configuration
Production Line Vertical Lifter
Pad Diameter
9
Lifting Capacity
500
Power
120V AC, 60 Hz, 5 AMP
Pad Quantity
4
This Wood's 500 Pound Powr-Grip® Manual Rotator is a great choice when you need maximum ease in the manipulation of heavy loads. It combines manual 360 degree rotation, and fast attach/release times, making them ideal on high-output production lines.
STANDARD PAD SPREAD:
CAT. NO. MR49AC: 24" x 30" (610 x 762 mm)
CAT. NO. MR411LAC: 26" x 32" (661 x 813 mm)
CAT. NO. MR4HV11AC: 25" x 31" (636 x 788 mm)
NUMBER/SIZE OF PADS:
CAT. NO. MR49AC: 4/9" (229 mm) Diameter
CAT. NO. MR411LAC: 4/11" (280 mm) Diameter Lipped
CAT. NO. MR4HV11AC: 4/10" (254 mm) Diameter Lipped
LIFTING CAPACITY:
CAT. NO. MR49AC: 500 lbs. (227 kg)
CAT. NO. MR411LAC: 700 lbs. (318 kg)
CAT. NO. MR4HV11AC: 600 lbs. (272 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
AVERAGE UNIT WEIGHT: 61 lbs. (28 kg)
STANDARD OPERATING POWER: 120V AC, 60 Hz, 5 AMP (100V AC, 60 Hz, 3 AMP and 240V AC, 60 Hz, 2 AMP also available)
APPLY/RELEASE TIMES:
CAT. NO. MR49AC: 1 sec./1 sec. (approximately)
CAT. NO. MR411LAC: 2 sec./2 sec. (approximately)
LOAD MOVEMENT: Manual rotation, 360 degrees edgewise with automatic locking at the quarter points.
STANDARD FEATURES:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
AVAILABLE OPTIONS:
• Air (Venturi) Power System
CAT. NO. MR49A1R
CAT. NO. MR411LA1R
CAT. NO. MR4HV11A1R
• Individual Pad Shutoffs
CAT. NO. CM1C0WB
• Green Lift Light
CAT. NO. E02GSL
• Vacuum Loss Warning Buzzer
CAT. NO. E03VLW
• Voltage Adaptation
CAT. NO. E06VA
• Closed Cell Foam Pad Rings
CAT. NO. FRHV11
(Available on CAT. NO. MR4HV11AC only)
• Linear Pad Frame
CAT. NO. CF8LF0
For special sizes and capacities please contact our Glass and Glazing Technical Sales.
