The CRL Wood's Powr-Grip 8 Pad Quadra-Tilt 360 features a unique Four-Bar Tilt Mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright rack. When a load is tilted to either the upright or the flat position, the Lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. This Lifter also features sliding adjustable pads that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because Vacuum Pads can attach at any number of locations on the load.
Adjustable Pad Spread:
Length: Min: 38" (965 mm), Max: 100-1/4" (2546 mm)
Width: Min: 18" (457 mm), Max: 29" (737 mm)
Number/Size of Pads: 8/6" (153 mm) Diameter
Load Capacity: 360 Lbs. (165 kg)
Unit Weight: 100 (46 kg)
Standard Operating Power: 120V AC, 60 Hz, 3 AMP(240V AC, 50/60 Hz, 2 AMP also available)
Apply: 4 sec. Release: 4 sec. (approx.)
Load Movement: Assisted manual tilt, 90 degree between upright and flat.
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Sliding Adjustable Pad Mounts
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Multiple Handles for Easy Load Positioning
Available Options:
Vacuum Loss Warning Buzzer CAT. NO. E03VLW
Individual Pad Shutoffs CAT. NO. CM1C0WB
2" (51 mm) Pad Spacer CAT. NO. CM3PE2
Voltage Adaptation CAT. NO. E06VA
Alternative Power Systems
DC Power System CAT. NO. MTA8lP6FDCS
Air (Venturi) Power System CAT. NO. MTA8lP6FA1R
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

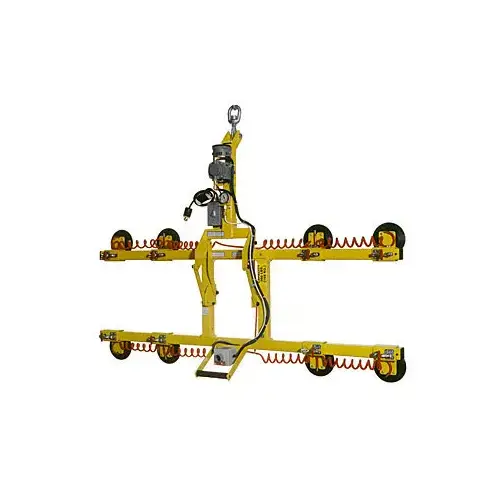

CRL MTA8LP6FAC Wood's Powr-Grip 8 Pad Quadra-Tilt 360 Series
Item #: MTA8LP6FAC by Wood's Powr-Grip
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- 360 Lbs. (165 kg) Lifting Capacity
- Innovative Quadra-Tilt Linkage
- Reduces Hazards Associated with Lifting Loads from Upright Racks
Lifting Capacity
360 pounds (165 kilograms)
F.O.B
Laurel, MT.
Load Movement
Assisted Manual Tilt, 90 degrees between upright and flat
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Power
AC
Configuration
Quadra Tilt Lifter
Pad Diameter
6
Pad Spread Size
38 x 18 (min), 100 1/4 x 29 (max)
Pad Quantity
8
Lifter Weight - AC Power
360 Lbs.
Load Capacity
360 lbs. (163 kg)
Maximum Pad Spread
100-1/4 x 29 in. (2546 x 737 mm)
Minimum Pad Spread
38 x 18 in. (965 x 457 mm)
Product Overview
The CRL Wood's Powr-Grip 8 Pad Quadra-Tilt 360 features a unique Four-Bar Tilt Mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright rack. When a load is tilted to either the upright or the flat position, the Lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. This Lifter also features sliding adjustable pads that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because Vacuum Pads can attach at any number of locations on the load.
Adjustable Pad Spread:
Length: Min: 38" (965 mm), Max: 100-1/4" (2546 mm)
Width: Min: 18" (457 mm), Max: 29" (737 mm)
Number/Size of Pads: 8/6" (153 mm) Diameter
Load Capacity: 360 Lbs. (165 kg)
Unit Weight: 100 (46 kg)
Standard Operating Power: 120V AC, 60 Hz, 3 AMP(240V AC, 50/60 Hz, 2 AMP also available)
Apply: 4 sec. Release: 4 sec. (approx.)
Load Movement: Assisted manual tilt, 90 degree between upright and flat.
Standard Features:
Vacuum Gauge
Vacuum Line Filter
Sliding Adjustable Pad Mounts
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Multiple Handles for Easy Load Positioning
Available Options:
Alternative Power Systems
DC Power System CAT. NO. MTA8lP6FDCS
Air (Venturi) Power System CAT. NO. MTA8lP6FA1R
