CRL Wood's Powr-Grip C-Frame Power Tilters help increase profits by quickly transferring glass directly into and out of the shipping case. Removal of the front of the case, as opposed to the end, keeps the case intact for reuse. This saves time, money and resources by reducing the time and manpower in involved in rebuilding old cases or making new ones. These industrial grade Vacuum Lifters are rugged, fast-acting units, designed for long service in production line operations. A minimum 14-1/2" (136 mm) throat depth allows C-Frame Vacuum Lifters to extend to the back of most shipping cases.
Standard Pad Spread:
CAT. NO. CFPT49AC: 33" x 39" (838 x 991 mm)
CAT. NO. CFPT69AC: 33" x 59" (838 x 1499 mm)
Lifting Capacity:
CAT. NO. CFPT49AC: 500 Lbs. (227 kg)
CAT. NO. CFPT69AC: 750 Lbs. (340 kg)
Unit Weight:
CAT. NO. CFPT49AC: 151 Lbs. (69 kg)
CAT. NO. CFPT69AC: 240 Lbs. (109 kg)
Standard Operating Power: 120V AC, 60 Hz, 12 AMP (240V AC, 60 Hz, 6 AMP also available)
Apply/Release:
CAT. NO. CFPT49AC: 1 sec./1 sec. (approx)
CAT. NO. CFPT69AC: 2 sec./2 sec. (approx)
Load Movement: Power tilt, 90 degree between upright and flat.
Time For 90 degree Tilt: 7 sec. (approx)
Tilt Duty: 81 Tilts Per Hour
Standard Throat Depth: 18-3/4" (476 mm)
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:
DC Power Systems:CAT. NO. CFPT49DCS or CAT. NO. CFPT69DCS
Vacuum Loss Warning Buzzer: CAT. NO. E03VLW
12V DC Vacuum Back-up System:CAT. NO. E01DCB
Individual Pad Shutoffs: CAT. NO. CM1C0WB
Telescoping Pad Arms: CAT. NO. CF3TA0
Movable Pad Mounts: CAT. NO. CM2SCM
Voltage Adaptation: CAT. NO. E06VA
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

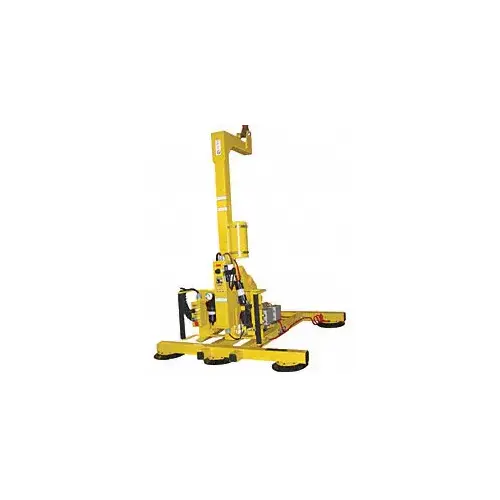

CRL CFPT69AC Wood's Powr-Grip AC Powered C-Frame Power Tilter 6-Cup Vacuum Lifter 750 Series
Item #: CFPT69AC by Wood's Powr-Grip
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Load Capacity 750 Lbs. (340 kg)
- Load Movement: Power Tilt 90º Between Upright and Flat
- Standard Pad Spread is 33" x 59" (841 mm x 1.50 m)
Load Capacity
F.O.B
Laurel, MT.
Number / Size of Vacuum Pads
6 / 9" (229 mm) diameter vacuum pads
Vacuum Pad Spread
33" x 59" (841 x 1502 mm)
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Pad Diameter
9
Style
750 Series
Power
120V AC, 60 Hz, 12 AMP
Pad Spread Size
33 x 59
Pad Quantity
6
Lifter Weight - Air Power
750 Lbs.
throat depth
19 in. (483 mm)
Product Overview
CRL Wood's Powr-Grip C-Frame Power Tilters help increase profits by quickly transferring glass directly into and out of the shipping case. Removal of the front of the case, as opposed to the end, keeps the case intact for reuse. This saves time, money and resources by reducing the time and manpower in involved in rebuilding old cases or making new ones. These industrial grade Vacuum Lifters are rugged, fast-acting units, designed for long service in production line operations. A minimum 14-1/2" (136 mm) throat depth allows C-Frame Vacuum Lifters to extend to the back of most shipping cases.
Standard Pad Spread:
CAT. NO. CFPT49AC: 33" x 39" (838 x 991 mm)
CAT. NO. CFPT69AC: 33" x 59" (838 x 1499 mm)
Lifting Capacity:
CAT. NO. CFPT49AC: 500 Lbs. (227 kg)
CAT. NO. CFPT69AC: 750 Lbs. (340 kg)
Unit Weight:
CAT. NO. CFPT49AC: 151 Lbs. (69 kg)
CAT. NO. CFPT69AC: 240 Lbs. (109 kg)
Standard Operating Power: 120V AC, 60 Hz, 12 AMP (240V AC, 60 Hz, 6 AMP also available)
Apply/Release:
CAT. NO. CFPT49AC: 1 sec./1 sec. (approx)
CAT. NO. CFPT69AC: 2 sec./2 sec. (approx)
Load Movement: Power tilt, 90 degree between upright and flat.
Time For 90 degree Tilt: 7 sec. (approx)
Tilt Duty: 81 Tilts Per Hour
Standard Throat Depth: 18-3/4" (476 mm)
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:
