This CRL Wood's Powr-Grip C-Frame Vertical Lifter 500 Series has a unique shape that enables the operator to easily remove glass from shipping crates with the crate's face removed. Its rugged construction is designed for long service life on high volume production lines.
Standard Pad Spread:
29-1/4" x 39-1/4" (743 x 997 mm)
Number/Size of Pads:
CAT. NO. CFVL49ACS 4/9" (229 mm) Diameter
CAT. NO. CFVL69ACS 6/9" (229 mm) Diameter
Lifting Capacity:
CAT. NO. CFVL49ACS: 500 Lbs. (227 kg)
CAT. NO. CFVL69ACS: 750 Lbs. (340 kg)
Standard Operating Power:
120V AC, 50/60 Hz, 5 AMP (other voltages available)
Apply/Release:
CAT. NO. CFVL49ACS: 1/1 sec. (approx)
CAT. NO. CFVL69ACS: 2/2 sec. (approx)
Load Movement: Upright to Upright
Standard Throat Depth: 14-1/2" (368 mm)
Standard Features:
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Green Lift Light
Spring-Mounted Pads
Industrial Grade Switches
Twist-lock Electrical Plug
Blow-off for Quick Release
Alternative Power Systems
DC Power System
(CAT. NOS. CFVL49DCS or CFVL69DCS)
Air (Venturi) Power System
(CAT. NOS. CFVL49A1RS or CFVL69A1RS)
Available Options
Vacuum Loss Warning Buzzer
CAT. NO. E03VLW
12V/DC Vacuum Back-up System
CAT. NO. 01DCB
Individual Pad Shutoffs
CAT. NO. CM1C0WB
DK Hardware Professional Tax Exempt? Net 30? - DK Net Terms
Roll over image to zoom in
Product Features
Product Overview
Related Videos
Reviews
Questions & Answers

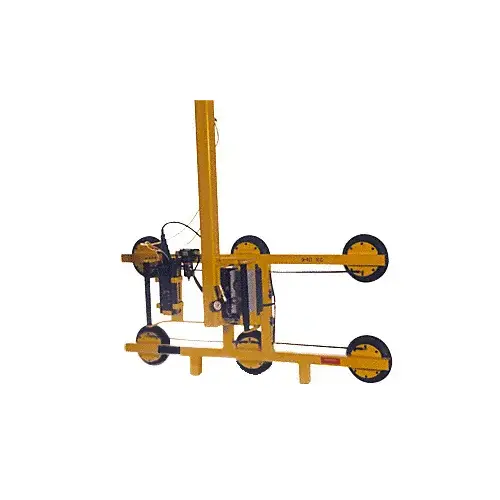

CRL CFVL69ACS Wood's Powr-Grip AC Powered C-Frame Vertical Lifter 6-Cup Vacuum Lifter 750 Series
Item #: CFVL69ACS by Wood's Powr-Grip
Item Discontinued!See reviewsSee reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Fast Vacuum Cup Attachment and Release
- Load Capacity - 750 Lbs. (340 Kg)
- Reaches Into the Glass Case to Lift Large Lites
- Speeds Production Lines
Lift Capacity
750 lb (340 kg)
Pad Spread Size
29-1/4 x 39-1/4
Load Capacity
750
F.O.B
Laurel, MT.
Vacuum Pad Spread Size
30 x 40 in (762 x 1,016 mm)
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Pad Diameter
9
Type
500 Series
Pad Quantity
6
throat depth
14-1/2
Product Overview
This CRL Wood's Powr-Grip C-Frame Vertical Lifter 500 Series has a unique shape that enables the operator to easily remove glass from shipping crates with the crate's face removed. Its rugged construction is designed for long service life on high volume production lines.
Standard Pad Spread:
29-1/4" x 39-1/4" (743 x 997 mm)
Number/Size of Pads:
CAT. NO. CFVL49ACS 4/9" (229 mm) Diameter
CAT. NO. CFVL69ACS 6/9" (229 mm) Diameter
Lifting Capacity:
CAT. NO. CFVL49ACS: 500 Lbs. (227 kg)
CAT. NO. CFVL69ACS: 750 Lbs. (340 kg)
Standard Operating Power:
120V AC, 50/60 Hz, 5 AMP (other voltages available)
Apply/Release:
CAT. NO. CFVL49ACS: 1/1 sec. (approx)
CAT. NO. CFVL69ACS: 2/2 sec. (approx)
Load Movement: Upright to Upright
Standard Throat Depth: 14-1/2" (368 mm)
Standard Features:
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Green Lift Light
Spring-Mounted Pads
Industrial Grade Switches
Twist-lock Electrical Plug
Blow-off for Quick Release
Alternative Power Systems
DC Power System
(CAT. NOS. CFVL49DCS or CFVL69DCS)
Air (Venturi) Power System
(CAT. NOS. CFVL49A1RS or CFVL69A1RS)
Available Options
CAT. NO. E03VLW
CAT. NO. 01DCB
CAT. NO. CM1C0WB
