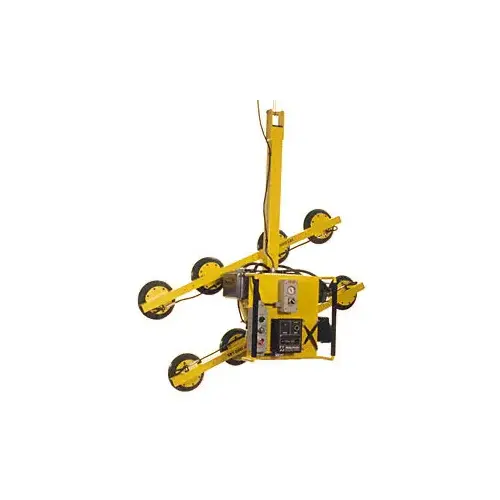

Wood's Powr-Grip Power Rotator 1000 (Cat. No. PR89ACS)

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

CRL PR89ACS Wood's Powr-Grip Power Rotator 1000 (Cat. No. PR89ACS)

Item #: PR89ACS by Wood's Powr-Grip

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • Eight 9" (229 mm) Diameter Vacuum Pads
  • 1,000 Lbs. (455 kg) Lifting Capacity
  • Load Movement: Power Rotation, 360 Degree Edgewise, with Adjustable Speed Control

Brand

Wood's Powr-Grip

Apply Time

3 sec. (approx.)

Release Time

F.O.B

Laurel, MT.

Pad Spread Size

29 x 59

Size

29" x 59" (740 mm x 1.50 m)

WARNING

This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Pad Quantity

8

Pad Diameter

9

Configuration

Rotator Lifter

Lifter Weight - AC Power (Pounds)

1000


This CRL Wood's® Powr-Grip® Power Rotator 1000 combines powered 360 degree rotation, adjustable rotation speed, and fast attach/release times, making it ideal for high-output production lines.
Standard Pad Spread:
CAT. NO. PR89ACS: 9" x 59" (740 x 1502 mm)
CAT. NO. PR8HV11ACS: 31" x 61" (788 x 1549 mm)
Number/Size of Pads:
CAT. NO. PR89ACS: 8/9" (229 mm) Diameter
CAT. NO. PR8HV11ACS: 8/10" (254 mm) Diameter Lipped
Lifting Capacity: 1,000 Lbs. (455 kg on smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 496 Lbs. (225 kg)
Standard Operating Power: 120V AC, 60 Hz, 15 AMP
Apply: 4 sec. Release: 3 sec. (approx.)
Load Movement: Power rotation, 360 degree edgewise, with adjustable speed control.
Maximum Rotation Speed: Full turn 7 sec. (approx.)
Minimum Rotation Speed: Full turn 30 sec. (approx.)
Standard features:

  • Green Lift Light
  • Vacuum Gauge
  • Vacuum Reserve Tank
  • Vacuum Line Filter
  • Spring-Mounted Pads
  • Twist-Lock Electrical Plug
  • Blow-off for Quick Release


Available Options:

Voltage Adaptation

CAT. NO. E06VA

Removable Control Pendant
CAT. NO. E09RP

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

12V DC Vacuum Back-up System
CAT. NO. E01DCB

Interchangeable Pad Frames
CAT. NO. F11F0

Removable Outer Pad Arms
CAT. NO. CF2EA0

Individual Pad Shutoffs
CAT. NO. CM1C0WB

C-Frame Lift Bar
CAT. NO. LB3CFL

Closed Cell Foam Pad Rings
CAT. NO. FRHV11(available on CAT. NO. PR8HV11ACS only)
