CRL PR2811LDCS Wood's Powr-Grip Power Rotator 3400 Series
Item #: PR2811LDCS by Wood's Powr-Grip
Roll over image to zoom in
CRL PR2811LDCS Wood's Powr-Grip Power Rotator 3400 Series
Item #: PR2811LDCS by Wood's Powr-Grip
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
- 3400 Lbs. (1540 Kg) Lifting Capacity
- Features Continuous 360 Degrees Rotation
- Twenty-eight 11" (280 mm) Diameter Lipped Vacuum Pads
Maximum Lifting Capacity
3400 Lbs. (1540 kg)
F.O.B
Laurel, MT.
Maximum Rotation Speed
Full turn, 60 seconds (approx.)
Brand
Wood's Powr-Grip
WARNING
This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
Pad Quantity
28
Rotation (Degrees)
360
Load Capacity
3400
Pad Spread Size
112-3/4 X 286-1/4

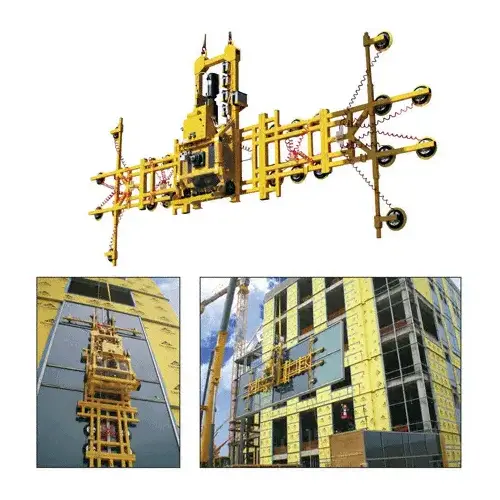

The CRL Wood's Powr-Grip® Power Rotator 3400 Series is designed for constructing curtain walls, and the Power Rotator 3400 offers maximum flexibility for handling enormous architectural components. Along with a maximum load capacity of 3,400 lbs. (1540 kg), this high-capacity Lifter features continuous 360 degrees rotation with an adjustable electronic speed controller, to give the operator precise control and smooth, effortless load positioning. Removable Vacuum Pads, Pad Arms and Pad Frame Sections allow for numerous configurations of the Vacuum Pads, to accommodate a wide variety of material sizes and shapes. A movable control pendant also allows the operator to control the vacuum system and rotation functions at a distance from the lifter. A self-contained DC power system provides cord-free operation at any construction site. For special sizes and capacities please contact Glass and Glazing Technical Sales for additional information.
Standard Pad Spread:
Minimum Width - 40" (1.02 m)
Maximum Width - 112-3/4" (2.86 m)
Minimum Length - 32" (813 mm)
Maximum Length - 286-1/4" (7.27 m)
Number/Size of Pads: 28 (maximum) 11" (280 mm) Diameter Lipped
Lifting Capacity: 3,400 Lbs. (1540 kg)
Unit Weight: 3,285 Lbs. (1490 kg)
Standard Operating Power:
12V DC, 26 AMP (Vacuum Generating System)
48V DC, 29 AMP (Rotation System)
Standard Charger Input Voltage:
120 V AC (other voltages available)
Load Movement:
Power Rotation, 360 Degree Edgewise, with Adjustable Speed Control.
Maximum Rotation Speed: Full turn, 60 sec, (approx.)
Standard Features:
On-Board Batteries
Removable Battery Chargers
Battery Energy Gauges
Green Lift Light
Removable Control Pendant
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Removable Pad Mounts
Removable Pad Frame Sections
Removable Pad Arms
Spring-mounted Pads
Blow-off for Quick Release
Available Options:
