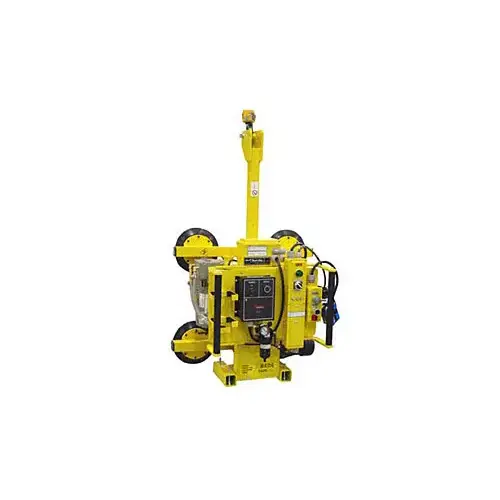

Wood's Powr-Grip Power Rotator 500 (Cat. No. PR49ACS)

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

CRL PR49ACS Wood's Powr-Grip Power Rotator 500 (Cat. No. PR49ACS)

Item #: PR49ACS by Wood's Powr-Grip

Item Discontinued!
See reviews See reviews
The item is currently out of stock and it may or may not be restocked
OUT OF STOCK

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
  • 500 Lbs. (225 kg) Lifting Capacity
  • Four 9" (229 mm) Diameter Vacuum Pads
  • Load Movement: Power Rotation is 360 Degrees Edgewise, with Adjustable Speed Control
  • Operates on 110 Volts AC

Lifting Capacity

500 lbs. (225 kg)

Size

29-1/4" x 29-1/4" (740 x 740 mm)

Pad Spread Size

29 1/4 x 29 1/4

Standard Operating Power

F.O.B

Laurel, MT.

Brand

Wood's Powr-Grip

WARNING

This product can expose you to LEAD, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov

Pad Quantity

4

Pad Diameter

9

Configuration

Rotator Lifter

Lifter Weight - AC Power (Pounds)

500


With continuous, fully powered 360 degree rotation, this CRL Wood's Powr-Grip® Power Rotator 500 supplies an efficient and economical way to feed vertically oriented processing machinery. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
Standard Pad Spread:
CAT. NO. PR49ACS: 29-1/4" x 29-1/4" (740 x 740 mm)
CAT. NO. PR4HV11ACS: 31" x 31" (788 x 788 mm)
Number/Size of Pads:
CAT. NO. PR49ACS: 4/9" (229 mm) Diameter
CAT. NO. PR4HV11ACS: 4/10" (254 mm) Diameter Lipped
Lifting Capacity: 500 Lbs. (225 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 214 Lbs. (98 kg)
Standard Operating Power: 120V AC, 60 Hz, 15 AMP
Apply: 1 sec. Release: 1 sec. (approx.)
Load Movement: Rotation, 360 degree edgewise, with adjustable speed control.
Maximum Rotation Speed: Full turn, 7 sec. (approx.)
Minimum Rotation Speed: Full turn, 30 sec. (approx.)
Standard Features:
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical
Plug Blow-off for Quick Release
Available Options:
  • Voltage Adaptation
    CAT. NO. E06VA
  • Removable Control Pendant
    CAT. NO. E09RP
  • Vacuum Loss Warning Buzzer
    CAT. NO. E03VLW
  • 12V DC Vacuum Back-up System:
    CAT. NO. E01DCB
  • Interchangeable Pad Frames
    CAT. NO. CF11F0
  • Individual Pad Shutoffs
    CAT. NO. CM1C0WB
  • C-Frame Lift Bar
    CAT. NO. B3CFL
  • Closed Cell Foam Pad Rings
    CAT. NO. FRHV11 (available on CAT. NO. PR4HV11ACS only).
    For special sizes and capacities, please contact our Glass and Glazing Technical Sales.

    .
