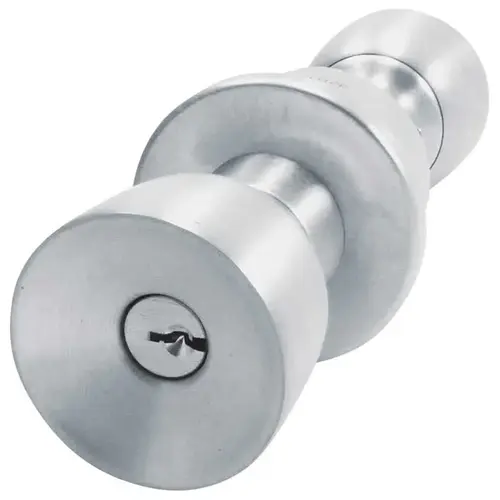

Falcon X571PD EG 626 Elite-Gala Dormitory Heavy Duty Cylinderindrical Lock Satin Chrome
Item #: X571PD EG 626 by Falcon
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Door Thickness: 1-3/8” to 1-7/8” doors. Locks for thicker doors also available. Consult factory.
- Backset: 2-3/4” standard. 2-3/8” also available.
- Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel. XC Series available with all internal parts of stainless steel or other nonferrous materials.
- Attachment: Locks secured to door by threaded collars. Inner collar tightened by special wrench furnished with each lock. Outer rose contains locking plate to prevent unauthorized removal.
- Handing: Specify hand of door when ordering. Field reversible.
- Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with other keyways and some competitor keyways. See pages 9-10.
- Trim: Roses are heavy wrought brass, bronze or stainless steel, installed over wrought steel reinforcing plates. Knobs are brass, bronze or stainless steel secured by a steel knob retainer which cannot be depressed when lock has been locked. See individual designs on pages 5-6 for details.
- Latches: 9/16” bolt projection, UL Listed for A-label applications. Standard latch faceplates 2-1/4” x 1-1/8” with square corners to accommodate beveled or flat front doors. 3/4” projection, UL Listed latch with 2-3/4” backset also available.
- Strikes: 4-7/8” x 1-1/4” ANSI strike with curved lip to meet ANSI A115.2 standard door frame preparation standard. Consult Options and Accessories section for other strike sizes and configurations.
- Screws: Furnished with combination wood/machine screws for use in wood or metal doors and frames.
- Certifications
- ANSI/BHMA: Meets ANSI/BHMA A156.2, Series 4000, Grade 1.
- UL: 3 hour A label.
Package Volume
0
Color
Satin Chrome
Function
X571-Dormitory Lock
ANSI Function
F90 - Dormitory
Grade
Grade 1
Special Marks
Conventional cylinder
Cylinder Type
Conventional Cylinder
Package Qty
1
Color Code
626/US26D
Rose/Escutcheon Design
G - Gala
Base Material
Brass or Bronze
Keyway
G
Lever/Knob Design
E - Elite
Application
Government and Military Applications That are in Marine Environments
Backset
2-3/4 Inch
Warranty
10 year limited
Handle Type
Knob
Door Thickness
1-3/8" To 1-7/8"
Rose Diameter
2-5/8 Inch
Latch Throw
1/2 Inch
Finish Description
Satin Chrome
Latch Number
A98535-00D
Strike Number
005164-000
Strike Type
ANSI Curved Lip
Finish Family
Satin Chrome
Included Components
(2) Keys
Strike Size
1-1/4" x 4-7/8"
Cylinder Material
Brass
Standards
ANSI/BHMA A156.2; UL Listed
Cylinder Type Used
Conventional
Function Description
Latch Bolt Operated by Knobs Except When Locked by Push Button From Inside. Key in Outside Knob Locks or Unlocks Knob and Releases Button. Closing Door Releases Push Button. Inside Always Free for Immediate Egress
Front Size
2-1/4" x 1-1/8"
Function Family
Dormitory
Strike Lip
1-5/16 Inch
Product Projection
2-3/4 Inch
Features
Locksets and Latch sets Shall Have Threaded Collars for Easy Door Thickness Adjustment on Both Sides of Lock; There Shall be No Exposed Screws on Trim
Product Type
Cylindrical Lock
Series
X Series
Manufacturer Parent
Allegion
Latch Corner
Square
Knob/Lever Size
2-3/32 Inch
Sub-Series
X571PD-EG-626
Product Overview
Dormitory Lock, Elite Knob, Gala Rose, Satin Chrome
When you need a tough, reliable lock that can also withstand the corrosive conditions of a marine environment you need a Falcon X Series lock with our stainless steel (SS) construction. The SS option provides a stainless steel and nonferrous constructed chassis that, when paired with stainless steel trim, provides a Grade 1 lock that is resistant to corrosion when exposed to moisture and salt. This full knob line features an interchangeable core that can be removed for quick, easy re-keying. Our interchangeable cores are compatible with SFIC products from other manufacturers. And they're backed by one of the best names in the business.
Features an interchangeable core that can be removed for quick, easy re-keying.
Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. 7-pin cylinders available in Hana design. Cylinder assemblies removable to rekey or change hand of lock. Also available with 6 or 7-pin interchangeable core cylinders–Elite and Troy designs. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
