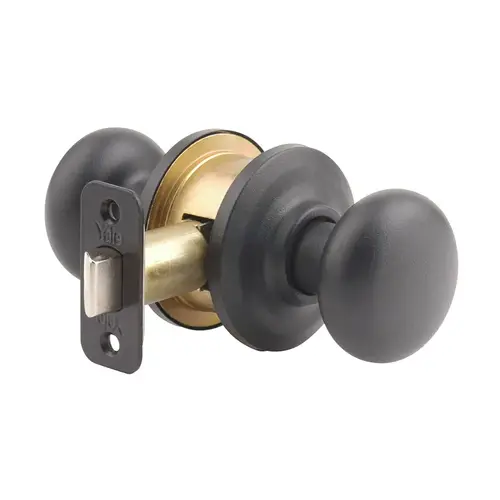

Yale Residential 10CB-SP-SB-01D64-02000Click To Copy Cambridge Passage Knob, Suede Black

YH CollectionKnobs

The YH Collection continues a legacy of distinctive design, high manufacturing standards and demanding performance started by Linus Yale in the mid-19th century. The YH Collection leverages years of engineering refinement with artful execution to offer a series of ANSI Grade 2 superior light commercial quality locks that will beautifully serve any home for generations. They offer superior functionality such as push-button locking, removable knobs for simple re-keying, and a lifetime limited finish and mechanical warranty.

Features:

• Meets ANSI Grade 2 Specifications

• Choose from up to 10 Distinctive Finishes (varies by style/function)

• Lifetime Limited Warranty – Finish and Mechanical

• Easy Install Mounting System – Square Spindle Simplifies Installation - Knobs, Levers

• Pre-Installed Mounting Screws

• Concealed Mounting Screws – Clean Upgraded Look

• Available KW-1, SC-1 keyway
• E1R (Para) Keyway available for Deadbolts and levers only

• Non-Handed Levers – Eliminate Handing Issues

• Push Button Locking – Panic-Free Egress

• Solid Brass Key Cylinder & Housing

• Removable Lever/Knob & Rosettes – Allows for Easy Scratch-Free Installation

• Front Removable Deadbolt Cylinder – Premier Series

• Heavy-Duty Shroud – Added Anti-Pry Security

• Four-Wound Spring Chassis – Heavy-Duty Feel, Eliminates Lever Sag

Specifications: Door Specs:

• 2 1/8" Face Bore, 1" Edge Bore, 2 3/8" Backset
• Box Pack: Latch Face 1" x 2 1/4"
• RC (Round Corner)
• SC (Square Corner, optional)

Latch:

• Box Pack: Adjustable 2 3/8" to 2 3/4" R
• RC (Round Corner)

Door Thickness:

• 1 3/8" to 1 3/4"

Cylinder:

• 6 Pin Cylinder
• (KW-1 Compatible)

Keying:

• Box Pack: KA3 (Keyed Alike)

Faceplate:

• 1" W x 2 1/4" H
• RC (Round Corner)

Strike:

• Box Pack: 2 1/4" Full Lip
• RC (Round Corner)

Certified ANSI/BHMA:

• A156.2 Series 4000 Grade 2

Knob Functions: 80:

• Dummy

10:

• Passage

60:

• One Sided w/ Plate

20:

• Privacy

26:

• Bath*

70:

• Entry

75:

• Classroom

78:

• Storeroom

• *Bath: Privacy with US26 interior finish

Knob selection: (BP):

• Bridgeport

(CB):

• Cambridge

(DM):

• Dartmouth

(XF):

• Oxford

Finishes: US3 / 605:

• Polished Brass

US5 / 609:

• Antique Brass

US10BP:

• Oil Rubbed Bronze Permanent

US10BE / 613E:

• Dark Oxidized Satin Bronze

US15 / 619:

• Satin Nickel

US15A / 620:

• Antique Nickel

US26 / 625:

• Polished Chrome

US26D / 626:

• Satin Chrome

GM:

• Gun Metal

BSP:

• Black Suede
