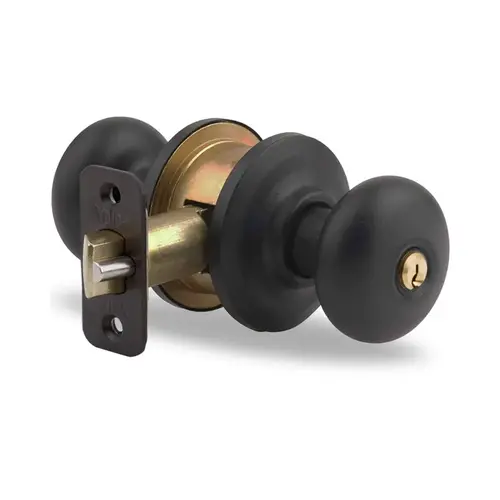

Yale Residential 70CB-SP-BSP-01D61-02000 Cambridge Entry Knob, Black Suede Powder
Item #: 70CB-SP-BSP-01D61-02000 by Yale
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Projection
2.2500
Finish
Black Suede Powder
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch
Keyway
Kwikset KW1
Function
70-Entry
Door Thickness
1-3/8" to 1-3/4"
Knob Diameter
2.2500
Strike
Round Corner Full Lip
Bore Size
2.1250
Cylinder Type
Conventional Cylinder
Finish Description
Black
Product Height
2 1/4 Inch
Included Components
Keyed Entry Lock; Keys; Knob Trim; Rose; Mounting Hardware
Knob style
CB-Cambridge
Keyblank Grouping
YALR-KW1-5-1
Rose/Escutcheon Trim
Round Rose
Door Cross Bore
2.125 Inch
Keying Charges
Residential-Conventional
Product Material
Zinc
Product Type
Cylindrical Lock
Box Length
7.0000
Box Width
3.2500
Box Height
2.6300
Warranty
Lifetime Limited Mechanical/Finish
Color Code
BSP
Collection
YH Collection
Strike Type
Round
Finish Family
Black
Latch Type
Deadlocking
Standards
A156.2 Series 4000
Faceplate Dimension
1" x 2-1/4" Round Corner
For Door Thickness
1-3/8" to 1-3/4"
Function Family
Entry/Entrance/Office
Product Projection
2-1/4 Inch
Manufacturer Parent
Assa Abloy
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
3.25x7x2.63"
Sub-Series
RL_Knob_Locksets_Yale_Residential_16
Features
Pre Installed Mounting Screws; Concealed Mounting Screws Clean Upgraded Look; Push Button Locking Panic Free Egress; Solid Brass Key Cylinder and Housing
The YH Collection continues a legacy of distinctive design, high manufacturing standards and demanding performance started by Linus Yale in the mid-19th century. The YH Collection leverages years of engineering refinement with artful execution to offer a series of ANSI Grade 2 superior light commercial quality locks that will beautifully serve any home for generations. They offer superior functionality such as push-button locking, removable knobs for simple re-keying, and a lifetime limited finish and mechanical warranty.
Features:- Meets ANSI Grade 2 Specifications
- Choose from up to 10 Distinctive Finishes (varies by style/function)
- Lifetime Limited Warranty – Finish and Mechanical
- Easy Install Mounting System – Square Spindle Simplifies Installation - Knobs, Levers
- Pre-Installed Mounting Screws
- Concealed Mounting Screws – Clean Upgraded Look
- Available KW-1, SC-1 keyway
- E1R (Para) Keyway available for Deadbolts and levers only
- Non-Handed Levers – Eliminate Handing Issues
- Push Button Locking – Panic-Free Egress
- Solid Brass Key Cylinder & Housing
- Removable Lever/Knob & Rosettes – Allows for Easy Scratch-Free Installation
- Front Removable Deadbolt Cylinder – Premier Series
- Heavy-Duty Shroud – Added Anti-Pry Security
- Four-Wound Spring Chassis – Heavy-Duty Feel, Eliminates Lever Sag
- 2 1/8" Face Bore, 1" Edge Bore, 2 3/8" Backset
- Box Pack: Latch Face 1" x 2 1/4"
- RC (Round Corner)
- SC (Square Corner, optional)
- Box Pack: Adjustable 2 3/8" to 2 3/4" R
- RC (Round Corner)
- 1 3/8" to 1 3/4"
- 6 Pin Cylinder
- (KW-1 Compatible)
- Box Pack: KA3 (Keyed Alike)
- 1" W x 2 1/4" H
- RC (Round Corner)
- Box Pack: 2 1/4" Full Lip
- RC (Round Corner)
- A156.2 Series 4000 Grade 2
- Dummy
- Passage
- One Sided w/ Plate
- Privacy
- Bath*
- Entry
- Classroom
- Storeroom
- *Bath: Privacy with US26 interior finish
- Bridgeport
- Cambridge
- Dartmouth
- Oxford
- Polished Brass
- Antique Brass
- Oil Rubbed Bronze Permanent
- Dark Oxidized Satin Bronze
- Satin Nickel
- Antique Nickel
- Polished Chrome
- Satin Chrome
- Gun Metal
- Black Suede
