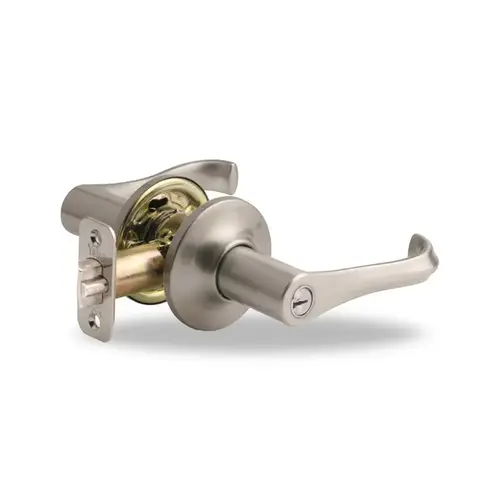

Woodland Entry Lever, Satin Nickel

Roll over image to zoom in

  • Product Features

  • Product Overview

  • Related Videos

  • Reviews

  • Questions & Answers

Yale Residential 771WL-SP-15-01421-02000 Woodland Entry Lever, Satin Nickel

Item #: 771WL-SP-15-01421-02000 by Yale

Brand: Yale Residential

UPC #: 081023171328

See reviewsSee reviews
See reviews summary
HURRY! Low in stock

$72.62

/each
SAVE UP TO 7.26
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Box Height

2.6300

Box Width

3.2500

Box Length

7.0000

Series

771 Series

Product Type

Cylindrical Lock

Product Material

Metal

Keying Charges

Residential-Conventional

Door Cross Bore

2.125 Inch

Rose/Escutcheon Trim

Round Rose

Keyblank Grouping

YALR-KW1-5-1

Lever Style

WL-Woodland

Included Components

Keyed Entry Lock, Keys, lever trim, rose, mounting hardware

Product Length

3.7850

Finish Description

Satin Nickel

Cylinder Type

Conventional Cylinder

Bore Size

2.1250

Strike

Round Corner Full Lip

Door Thickness

1-3/8"; 1-1/2"; 1-5/8"; or 1-3/4"

Function

771-Entry

Keyway

Kwikset KW1

Backset

2-3/8 Inch

Grade

ANSI/BHMA Grade 3

Finish

Satin Nickel

Projection

2.6250

Warranty

Limited Lifetime Mechanical and Finish Warranty

Color Code

619/US15

Application

Entrances and Side Doors

Collection

New Traditions

Latch Type

Adjustable

Strike Type

Full Lip

ADA Compliant

No

Finish Family

Satin Nickel

Strike Size

2-1/4 Inch

Standards

ANSI/BHMA A156.2; ADA

Faceplate Dimension

1" x 2-1/4"

Door Preparation

Cross Bore 2-1/8"; Edge Bore 1"

Function Description

Both sides locked or unlocked by key outside or push button inside

Function Family

Entry/Entrance/Office

Product Projection

2-5/8 Inch

Features

Constructed From Quality Materials With A Focus On Durability; Easy One Person Installation With Removable Lever And Rosette For Scratch-Free Installation; Concealed Screws For A Clean Look

Manufacturer Parent

Assa Abloy

Door Edge Bore

1 Inch

Box Dimensions (L x W x H)

3.25x7x2.63"

Sub-Series

RL_Lever_Locksets_Yale_Residential_07

Product Overview
New TraditionsLevers

With concealed holding screws and a strengthened spindle, New Traditions products reflect an outstanding commitment to quality. Like the New Traditions knobs, the levers are exquisitely designed. With free-flowing curves and smooth edges, the Mesa, Niagara, Savannah, Prairie, Vidalia, and Woodland levers offer impeccable elegance at an exceptional price.

Features:
  • Meets ANSI Grade 3 Specifications
  • Choose from up to 10 Distinctive Finishes (varies by style/function)
  • Lifetime Limited Warranty – Finish and Mechanical
  • Concealed Mounting Screws – Clean Upgraded Look
  • Available KW-1, SC-1 keyway; E1R (Para) Keyway available for Deadbolts and levers only
  • Non-Handed Levers – Eliminate Handing Issues
  • Removable Lever/Knob & Rosettes – Allows for Easy Scratch-Free Installation
  • *NOTE - Not for Use with Commercial Hollow Metal Doors
Specifications: Door Specs:
  • 2 1/8" Face Bore
  • 1" Edge Bore
  • 2 3/8" Backset
Box PacK:
  • Latch Face 1" x 2 1/4"
  • RC (Round Corner, optional)
Latch:
  • Box Pack: Adjustable 2 3/8" or 2 3/4" RC (Round Corner)
Door Thickness:
  • 1 3/8" to 13/4"
Cylinder:
  • 5 Pin Cylinder (KW-1 Compatible)
Keying Box Pack:
  • KD (Keyed Different)
Faceplate:
  • 1" W x 2 1/4" H RC (Round Corner)
Strike:
  • Box Pack: 2 1/4" Full Lip RC (Round Corner)
Certified:
  • A156.2 Series 4000 - ANSI/BHMA Grade 3
  • NOTE: New Tradition Series levers are designed to be reversible to eliminate handing (except for the Single Dummy and Handleset interior packs). Please specify right hand (RH) or left hand (LH) when ordering these functions.
Lever Functions: 81:
  • Dummy
101:
  • Passage
161:
  • One Sided w/ Plate
201:
  • Privacy
221:
  • Bath*
701:
  • Enrey Knob/Lever
771:
  • Enrey Knob/Lever
74LC:
  • Enrey SFIC
  • *Bath: Privacy with US26 interior finish
Lever Selection: (ML):
  • Mesa
(NL):
  • Nigara
(PL):
  • Prairie
(SL):
  • Savannah
(WL):
  • Woodland
(VI):
  • Vidalia
(VISQ):
  • Vidalia
Finishes: US3 / 605:
  • Polished Brass
US5 / 609:
  • Antique Brass
US10BP:
  • Oil Rubbed Bronze Permanent
US10BE / 613E:
  • Dark Oxidized Satin Bronze
US15 / 619:
  • Satin Nickel
US15A / 620:
  • Antique Nickel
US26 / 625:
  • Polished Chrome
US26D / 626:
  • Satin Chrome
GM:
  • Gun Metal
BSP:
  • Black Suede
