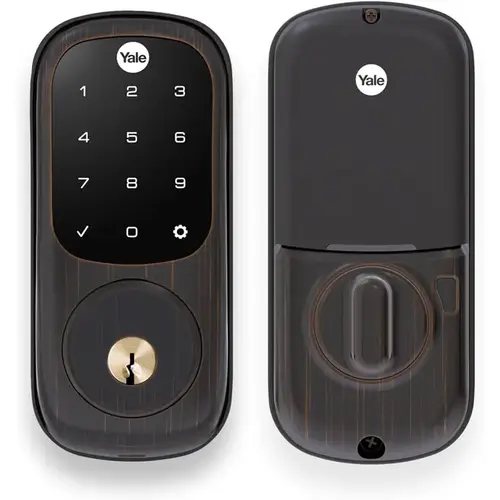

Yale Residential YRD226-HA2-10BP-KWKD Assure Lock Touchscreen Deadbolt
Item #: YRD226-HA2-10BP-KWKD by Yale
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Grade
ANSI/BHMA Grade 2
Backset
2-3/8 Inch or 2-3/4 Inch Adjustable, Square Corner
Warranty
1 Year
Operating Temperature
Outside Temperature: -22 to 140°F; Inside Temperature: 5 to 158°F; Storage Temperature: -40 to 185°F
Color Code
613/US10B
Keyway
Kwikset KW1
Function
226-Touchscreen Deadbolt
Door Thickness
1-3/8" to 2-1/4"
Cylinder Type
Conventional
Latch Throw
1 Inch
Finish Description
Oil Rubbed Dark Bronze
Product Height
Inner Trim: 6-7/8"; Outer Trim: 6-1/16"
Product Length
Inner Trim: 3"; Outer Trim: 2-3/4"
Product Width
Inner Trim: 2-1/8"; Outer Trim: 1-3/8"
ADA Compliant
No
Corner Type
Round
Finish Family
Dark Bronze
Included Components
Keys; Battery Cover; (4) AA Batteries; Mounting Plate; Inside Lock; Mounting Hardware (Strike Plate, Adjustable Deadbolt, (2) Inside Lock Screws, (4) Strike Plate and Deadbolt Screws; (2) Security Strike Plate Screws, (2) Long Through Bolt)
Keying Type
Keyed Different
Strike Size
1" x 2-1/4"
Door Cross Bore
2.125 Inch
Product Material
Metal
Low Battery Indicator
Yes
Standards
ANSI/BHMA A156.36 Grade 2
Front Size
1" x 2-1/4"
Battery Type
AA
Features
Dual Access Modes (PIN Code and Mechanical Key); Voice Guidance Feature; Automatic Locking; One Touch Locking; Forced Lock Modes; Low Battery Alarm; Optional Remote Control
Product Type
Touchscreen Lock
Series
YRD226 Series
Bolt Backset
2-3/8" or 2-3/4"
Manufacturer Parent
Assa Abloy
Door Edge Bore
1 Inch
Box Dimensions (L x W x H)
9.125x5.5x5.5"
Latchbolt Type
Adjustable Latch
Sub-Series
YRD226-HA2-619-KWKD
Battery Used
Four AA Alkaline Batteries
Product Overview
Assure Lock Touchscreen Deadbolt with Zigbee Smart Module and Kwikset Keyway Keyed Different in Oil Rubbed Bronze Permanent
