58" x 22" x 14.5" Tall (1.47 m x 560 x 370 mm)
- Design for 2 to 2.5 Ton Lift Trucks
- Four Lift Positions
- Maximum Extension 94-1/2" (2.40 m)
- Maximum Load 4400 Lbs. (1996 kg)

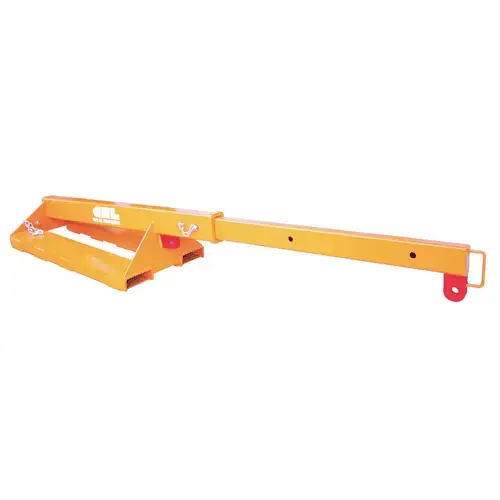

The CRL Forklift Boom
is an extendable 4 position boom with a maximum reach of 94-1/2" (2.40 m) and a maximum weight capacity in the fully retracted position of 4400 lbs. (1996 kg). Designed for use with 2 and 2.5 ton forklifts, the fork pockets measure 6.5" (165 mm) wide and 2.5" (64 mm) tall. Each boom comes with an attached safety chain to lock the boom onto the forklift mast. Lift position one is on the frame itself and measures 42.5" (1.08 m) with a 4400 pound (1996 kg) capacity. Position two is on the fully retracted boom at 55" (1.40 m) with a 3300 pound (1497 kg) capacity. Position 3 with boom partially extended to 74.8" (1.90 m) with a weight capacity of 2200 pounds (998 kg). When fully extended to position 4 the boom has a 94.5" (2.40 m) reach and a maximum weight capacity of 1100 lbs. (500 kg). Use the CRL Forklift Boom with CRL or Wood's below-the-hook vacuum lifting frames for moving heavy glass and windows in the shop or on the jobsite. The FLB1100 can ship to you from your nearest CRL Service Center. Important Notes: Protective head gear, safety glasses, and any other safety gear required by your company should be worn whenever glass is being moved overhead. Close attention to and communication with forklift operator must be observed to avoid accidents and injuries.
