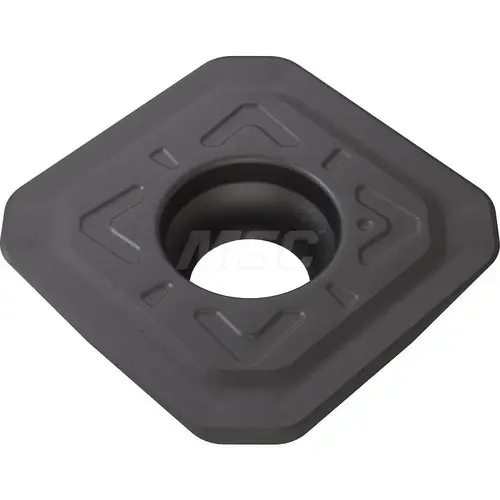

YG-1 12000203 Milling Insert: YG602, Solid Carbide TiAlN
Item #: 12000203 by YG-1
See reviewsSee reviews
Use Code: SAVEBIG2025 for Extra 10% Off
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered
Material Application
Steel
ANSI Code
SEMT13T3AGSN YG602
Number of Cutting Edges
4
Standards
ANSI
Insert Material
Solid Carbide
Series
SEMT
Coating Process
PVD
Coating/Finish
TiAlN
Corner Radius (Decimal Inch)
0.0590
Length (Decimal Inch - 4 Decimals)
0.5280
Manufacturers Catalog Number
SEMT13T3AGSN YG602
Material Grade
P20
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Thickness (Decimal Inch - 4 Decimals)
0.1570
UNSPSC Code
23291601
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.5280
Coating Classification
PVD
Insert Holding Method
Screw
Maximum Depth of Cut (Decimal Inch)
0.3960
Multi-use Tool
Yes
Rake
Positive
Insert Hand
Neutral
Inscribed Circle (Decimal Inch)
0.5280
Insert Shape
Square
Chip Breaker
Common
Insert Style
SEMT
Insert Size Code
13T3
Relief Angle
20.00
Included Angle Degree
90
Manufacturer Grade
YG602
Inscribed Circle Range (Decimal Inch)
0.5100 to 0.6000
Single or Double Sided Insert
Single
Cutter Series Compatibility
Legacy
Length Range (Decimal Inch)
0.5000 to 0.6000
Thickness Range (Decimal Inch)
0.1500 to 0.1750
Iso Code
SEMT13T3AGSN YG602
Product Overview
Milling Insert: YG602, Solid Carbide TiAlN Coated, 0.157" Thick, 0.528" Wide
