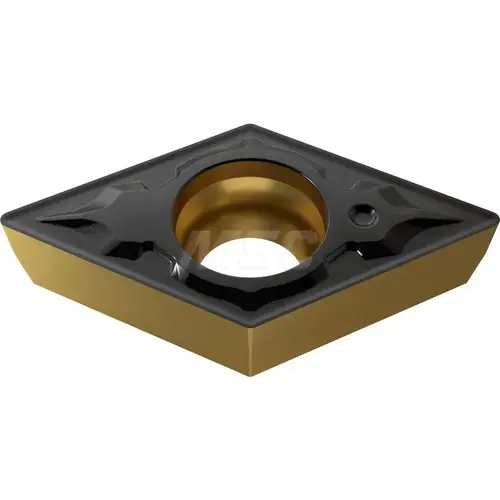

YG-1 22000217 Turning Insert: DCMT11T304-UG YG3020, Solid Carbide Al2O3
Item #: 22000217 by YG-1
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Chamfered & Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
55degree
Insert Material
Carbide
Series
DCMT
Coating Process
CVD
Coating/Finish
Al2O3
Corner Radius (Decimal Inch)
0.0156
Manufacturers Catalog Number
22000217
Material Grade
P15
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.3750in
Width (Inch)
3/8in
Coating Classification
CVD
Insert Holding Method
Screw
Insert Length (Decimal Inch)
0.9140
Insert Thickness (Decimal Inch)
0.1562
Insert Thickness (Inch)
5/32
Maximum Depth of Cut (Decimal Inch)
0.0980
Multi-use Tool
No
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/64
Insert Shape
Diamond 55
Clearance Code
C
Rake Angle
17
Full Radius
No
Insert Shape Code
D
Chip Breaker
UG
Insert Style
DCMT
Insert Size Code
32.51
Tolerance Code
M
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Manufacturer Grade
YG3020
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Multilayer Coating
Iso Code
DCMT11T304UG
Product Overview
Turning Insert: DCMT11T304-UG YG3020, Solid Carbide TiCN & Al2O3 Coated, 0.441" Long, 3/8" Inscribed Circle, 1/64" Corner Radius, Series DCMT
