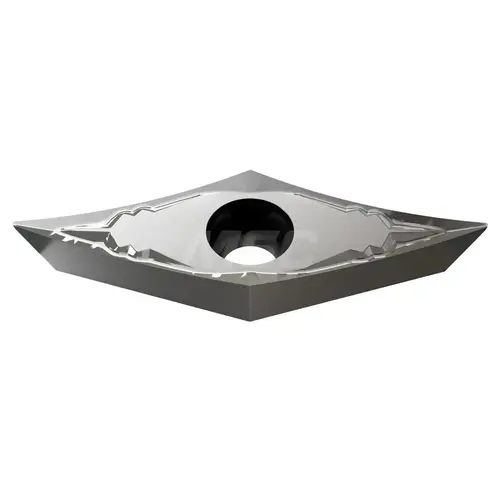

YG-1 22000417 Turning Insert: VCGT160402-AL YG10, Solid Carbide Bright/Uncoated
Item #: 22000417 by YG-1
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Cutting Edge Style
Honed
Number of Cutting Edges
2
Standards
ANSI
Included Angle
35
Insert Material
Carbide
Series
VCGT
Coating Process
Uncoated
Coating/Finish
Bright/Uncoated
Corner Radius (Decimal Inch)
0.0080
Manufacturers Catalog Number
22000417
Material Grade
N05
Primary Workpiece Material
Non-Ferrous Metal
Primary Workpiece Material Code
N
UNSPSC Code
23242105
Vendor Drop Ship
N
Width (Decimal Inch - 4 Decimals)
0.375
Width (Inch)
3/8
Coating Classification
Uncoated
Insert Holding Method
Screw
Insert Length (Decimal Inch)
1.3080
Insert Thickness (Decimal Inch)
0.1875
Insert Thickness (Inch)
3/16
Maximum Depth of Cut (Decimal Inch)
0.0390
Multi-use Tool
No
Rake
Positive
Insert Hand
Neutral
Wiper Edge
No
Inscribed Circle (Decimal Inch)
0.3750
Corner Radius (Inch)
1/128
Insert Shape
Diamond
Clearance Code
C
Rake Angle
28
Full Radius
No
Insert Shape Code
V
Chip Breaker
AL
Insert Style
VCGT
Insert Size Code
330.5
Tolerance Code
G
Relief Angle
7
Inscribed Circle (Inch)
3/8
Multi-Use Application
Turning
Manufacturer Grade
YG10
Length Range (Decimal Inch)
0.7000 - 10.0000
Proprietary Coating Designation
Uncoated
Iso Code
VCGT160402-AL
Product Overview
Turning Insert: VCGT160402-AL YG10, Solid Carbide Uncoated, 0.622" Long, 3/8" Inscribed Circle, 0.2" Corner Radius, Series VCGT
