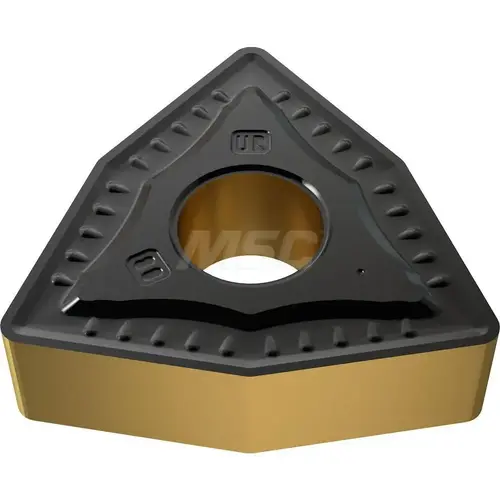

YG-1 22000471 Turning Insert: WNMG432-UR YG3020, Solid Carbide Al2O3

Item #: 22000471 by YG-1

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
In Stock

$19.21

/each
SAVE UP TO 1.92
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 384 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Iso Code

WNMG080408UR

Proprietary Coating Designation

Multilayer Coating

Length Range (Decimal Inch)

0.6500 - 0.7000

Manufacturer Grade

YG3020

Multi-Use Application

Turning

Inscribed Circle (Inch)

1/2

Tolerance Code

M

Insert Size Code

432

Insert Style

WNMG

Chip Breaker

UR

Insert Shape Code

W

Full Radius

No

Rake Angle

-17

Clearance Code

N

Insert Shape

Trigon

Corner Radius (Inch)

1/32

Insert Length (mm)

0.31

Inscribed Circle (Decimal Inch)

0.5000

Wiper Edge

No

Insert Hand

Neutral

Rake

Negative

Multi-use Tool

No

Maximum Depth of Cut (Decimal Inch)

0.1180

Insert Thickness (Inch)

3/16

Insert Thickness (Decimal Inch)

0.1875

Insert Length (Decimal Inch)

0.6860

Insert Holding Method

Clamp

Coating Classification

CVD

Width (Inch)

1/2

Width (Decimal Inch - 4 Decimals)

0.6860in

Vendor Drop Ship

N

UNSPSC Code

23242105

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Material Grade

P15

Manufacturers Catalog Number

22000471

Corner Radius (Decimal Inch)

0.0312

Coating/Finish

Al2O3

Coating Process

CVD

Series

WNMG

Insert Material

Carbide

Included Angle

80degree

Standards

ANSI

Number of Cutting Edges

6

Cutting Edge Style

Chamfered & Honed

Product Overview
Turning Insert: WNMG432-UR YG3020, Solid Carbide TiAlN & Al2O3 Coated, 0.31 mm Long, 1/2" Inscribed Circle, 1/32" Corner Radius, Series WNMG
