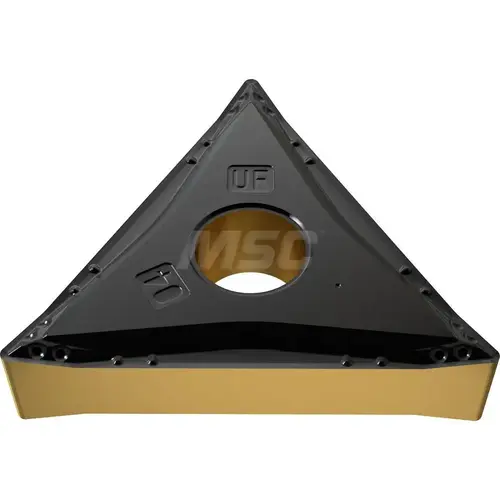

YG-1 22001203 Turning Insert: TNMG220404-UF YG3020, Carbide Al2O3
Item #: 22001203 by YG-1
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
ANSI Insert Code
TNMG431
Iso Code
TNMG220404-UF
Proprietary Coating Designation
Multilayer Coating
ISO Insert Code
TNMG220404
ANSI Size Code
431
Length Range (Decimal Inch)
0.7000 - 10.0000
ISO Size Code
220404
Manufacturer Grade
YG3020
Multi-Use Application
Turning
Inscribed Circle (Inch)
1/2
Tolerance Code
M
Insert Size Code
431
Insert Style
TNMG
Chip Breaker
UF
Insert Shape Code
T
Full Radius
No
Rake Angle
-16
Clearance Code
N
Insert Shape
T - Triangle
Corner Radius (Inch)
1/64
Inscribed Circle (Decimal Inch)
0.5000
Wiper Edge
No
Insert Hand
Neutral
Rake
Negative
Multi-use Tool
No
Maximum Depth of Cut (Decimal Inch)
0.1570
Insert Thickness (Inch)
3/16
Insert Thickness (Decimal Inch)
0.1875
Insert Length (Decimal Inch)
0.8660
Insert Holding Method
Clamp
Coating Classification
CVD
Width (Inch)
1/2
Width (Decimal Inch - 4 Decimals)
0.8660
Vendor Drop Ship
N
UNSPSC Code
23242105
Primary Workpiece Material Code
P
Primary Workpiece Material
Steel
Material Grade
P15
Manufacturers Catalog Number
22001203
Corner Radius (Decimal Inch)
0.0156
Coating/Finish
Al2O3
Coating Process
CVD
Side Clearance
Negative
Series
TNMG
Insert Material
Carbide
Included Angle
60
Standards
ANSI
Number of Cutting Edges
6
Cutting Edge Style
Sharp
Product Overview
Turning Insert: TNMG220404-UF YG3020, Carbide Al2O3 & TiCN Coated, Neutral, 0.8660" Long, 0.5000" Inscribed Circle, 0.0156" Corner Radius, 60 deg Triangle, Series TNMG
