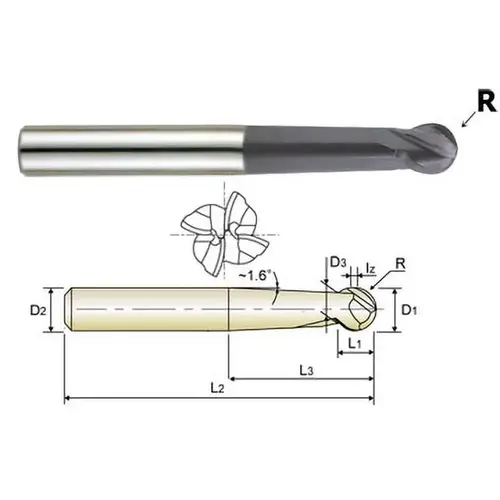

YG-1 93298 Ball End Mill TiAlN

Item #: 93298 by YG-1

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off
HURRY! Low in stock

$160.56

/each
SAVE UP TO 16.06
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 2 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Primary Workpiece Material Code

P

Variable Index

No

System of Measurement

Fractional Inch

Single Or Double End

Single

Series

EM093

Shank Diameter Tolerance

+0.0000/-0.0003 in

Shank Diameter (Decimal Inch)

0.3125

Reach Length (Decimal Inch)

1.5000

Cutting Direction

Right Hand

Nose Radius (Decimal Inch)

0.1563

Flute Direction

Right Hand

Reach Length (Inch)

1-1/2

Coating Classification

PVD

End Mill Material

Solid Carbide

Mill Diameter Tolerance

+0.0000/-0.0010 in

Coolant Through

No

Overall Length (Decimal Inch)

4.0000in

Helix Style

Medium

Extended Reach

Yes

Length Type

Extended

Flute Type

Helical

Primary Workpiece Material

Steel

Mill Diameter (Decimal Inch)

0.3125in

Secondary Workpiece Material Code

K

Chipbreaker

No

Neck Length (Decimal Inch)

1.1250

Length of Cut (Inch)

3/8in

Number of Flutes

4

Neck Diameter (Decimal Inch)

0.2500in

Manufacturers Catalog Number

93298

UNSPSC Code

27112803

Coating/Finish

TiAlN

Material Removal Type

Roughing & Finishing

Helix Angle

30

Material Grade

Micrograin

Mill Diameter (Inch)

5/16in

Neck Length (Inch)

1-1/8in

Secondary Workpiece Material

Cast Iron

Overall Length (Inch)

4in

Vendor Drop Ship

N

Variable Helix

No

Shank Diameter (Inch)

5/16in

Shank Type

Straight-Cylindrical

Product Overview
Ball End Mill
