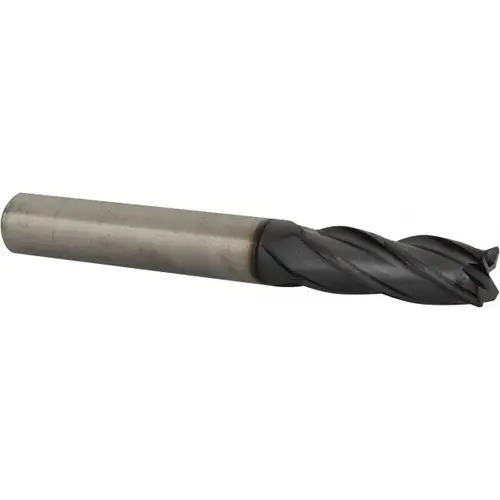

YG-1 GM649024 Corner Radius End Mill: 3/8" Dia, 1" LOC, 0.0200" Radius, 4 Flute, Solid Carbide

Item #: GM649024 by YG-1

See reviewsSee reviews
See reviews summary
Use Code: SAVEBIG2025 for Extra 10% Off

$81.57

/each
SAVE UP TO 8.16
Buying in bulk
Special Order*Usually ships in 1-2 weeks
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Corner Radius Tolerance

+0.00100 to -0.00100 in

Shank Diameter Tolerance

0.0000/0.0003 in

Mill Diameter Tolerance

0.0000/0.0012 in

Secondary Workpiece Material Code

M

Variable Index

No

Single Or Double End

Single

Secondary Workpiece Material

Stainless Steel

Mill Diameter (Inch)

3/8

Mill Diameter (Decimal Inch)

0.3750

Material Removal Type

Finishing

Helix Style

Medium

Flute Direction

Right Hand

Extended Reach

No

End Mill Material

Solid Carbide

Coating Classification

CVD

Centercutting

Yes

Vendor Drop Ship

N

UNSPSC Code

27112803

Shank Diameter (Inch)

3/8

Shank Diameter (Decimal Inch)

0.3750

Primary Workpiece Material Code

P

Primary Workpiece Material

Steel

Overall Length (Inch)

3

Overall Length (Decimal Inch)

3.0000

Material Grade

MG

Length of Cut (Inch)

1

Length Of Cut (Decimal Inch - 4 Decimals)

1.0000

Corner Radius (Decimal Inch)

0.0200

Coolant Through

No

Coating/Finish

Y

Variable Helix

No

Series

GM649

Cutting Direction

Right Hand

Length Type

Standard

Chipbreaker

No

Pitch

Normal

Number of Flutes

4

End Type

Corner Radius

Shank Type

Straight-Cylindrical

Material Application

Steel

Flute Type

Spiral

For Use With

End Mill Toolholders

Product Overview
Corner Radius End Mill: 3/8" Dia, 1" LOC, 0.0200" Radius, 4 Flute, Solid Carbide 3" OAL, 3/8" Shank Dia, 30 deg Helix, Y Coated, Single End, Centercutting, Series GM649
