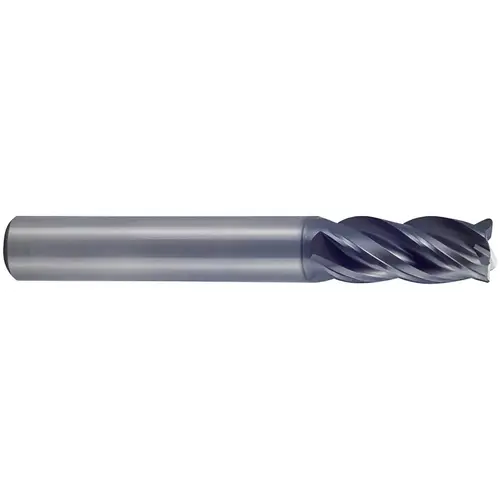

YG-1 UGMF70012 Corner Radius End Mill: 3/16" Dia, 3/16" LOC, 0.0100" Radius, 4 Flute, Solid Carbide
Item #: UGMF70012 by YG-1
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
For Use With
Toolholders
Flute Type
Spiral
Material Application
Steel
Shank Type
Straight-Cylindrical
End Type
Corner Radius
Number of Flutes
4
Pitch
Variable
Chipbreaker
No
Length Type
Standard
Cutting Direction
Right Hand
Series
UGMF70
Variable Helix
Yes
Coolant Through
No
Corner Radius (Decimal Inch)
0.0100
Length Of Cut (Decimal Inch - 4 Decimals)
0.1875
Length of Cut (Inch)
3/16
Manufacturers Catalog Number
UGMF70012
Material Grade
Micrograin
Overall Length (Decimal Inch)
2.0000
Overall Length (Inch)
2
Primary Workpiece Material
Steel
Primary Workpiece Material Code
P
Shank Diameter (Decimal Inch)
0.1875
Shank Diameter (Inch)
3/16
UNSPSC Code
27112803
Vendor Drop Ship
N
Centercutting
Yes
Coating Classification
PVD
End Mill Material
Solid Carbide
Extended Reach
No
Flute Direction
Right Hand
Material Removal Type
Roughing & Finishing
Mill Diameter (Decimal Inch)
0.1875
Mill Diameter (Inch)
3/16
Secondary Workpiece Material
Superalloys & Titanium
Single Or Double End
Single
Variable Index
Yes
Reach Length (Inch)
3/16
Secondary Workpiece Material Code
S
Mill Diameter Tolerance
+0.0000/-0.0012 in
Reach Length (Decimal Inch)
0.1875
Shank Diameter Tolerance
h6
Corner Radius Tolerance
+0.0008 to -0.0008 in
Product Overview
Corner Radius End Mill: 3/16" Dia, 3/16" LOC, 0.0100" Radius, 4 Flute, Solid Carbide 2" OAL, 3/16" Shank Dia, 35;37 deg Helix, Single End, Centercutting, Series UGMF70
