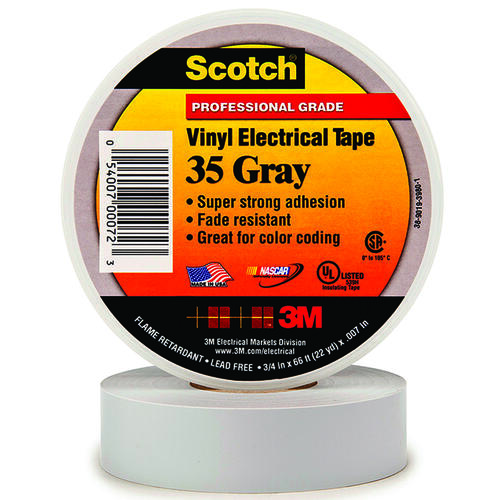

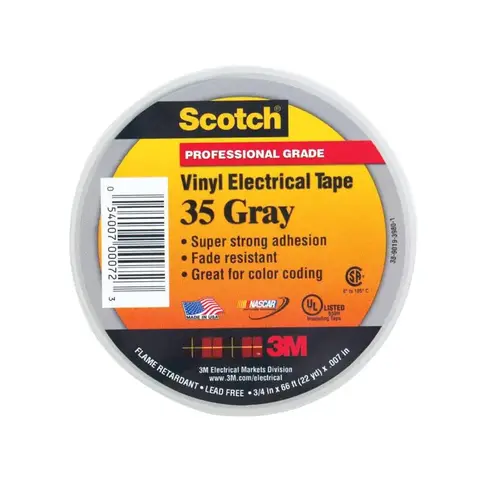

SCOTCH 00072 Electrical Tape, 66 ft L, 3/4 in W, PVC Backing, Gray
Item #: 00072 by 3M
UPC #: 054007000723
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- The combination of the pressure-sensitive, rubber resin adhesive and the PVC backing offers excellent electrical and mechanical protection
- Flame-retardant and highly resistant to UV rays, abrasion, moisture, alkalies, solvents and many acids
- Flame retardant and highly resistant to abrasion, moisture, alkalis, solvents and many acids
- Withstands a temperature range of 32 to 221 deg f
- Made of durable PVC
- Withstands a temperature range of -14 to 221 deg F
Application
For indoor and weather-protected outdoor uses
Tensile Strength
17 lb/in
Adhesion Strength
20 in-oz
Width (in)
3/4
Part no.
00072
MFR Model
00072
Standard/Approvals
CSA Certified | RoHS 2011/65/EU Compliant | UL Listed | VDE Certified
Backing Material
PVC
Color/Finish
Gray
Series
35
Material
PVC
Elongation at Break
225 %
Thickness
7 mil
Length
66 ft
Overall Width
0.75"
Pull Length
3/4"
Color
Gray
Dielectric Strength
1250 V/mil
Trade Name
Scotch
Adhesive Presence
Single-Sided
Electrical or Thermal
Electrically Insulating
Maximum Operating Temperature
+221 °F
Minimum Operating Temperature
+32 °F
Width
3/4"
Maximum Temperature
221 °F
Weather Resistant
Yes
Defective Code
A
Each Weight
0.200 LB
Flame Retardant
Yes
Hazardous Material
No
Returnable
Yes
Solvent Resistant
Yes
Velocity
X
Product Type
Electrical Tape
Alternative UPC
80610834063
Alternate Part Number-1
35-3/4X66FT-GY
Temperature Rating
32 to 220 deg F
Nomenclature
35 GRAY ELECTRICAL TAPE 3/4X66
Resistance
Abrasion; Weather; Alkalies; Acid; Corrosion
UNSPSC
31201502
Thickness [Nom]
7 mil
Tensile Strength (2) [Nom]
18 in·lb
Temp. Range [Nom]
176° F
Nom. Width
3/4 in
Nom. Length
66 ft
Product Overview
Designed for use in phase identification, color coding of motor leads and piping systems and for marking safety areas
Has excellent electrical insulating properties, wraps smoothly, conforms well and holds over a wide range of temperatures
Pressure-sensitive rubber based adhesive
Inhibits corrosion of electrical conductors.
Has excellent electrical insulating properties, wraps smoothly, conforms well and holds over a wide range of temperatures
Pressure-sensitive rubber based adhesive
Inhibits corrosion of electrical conductors.
