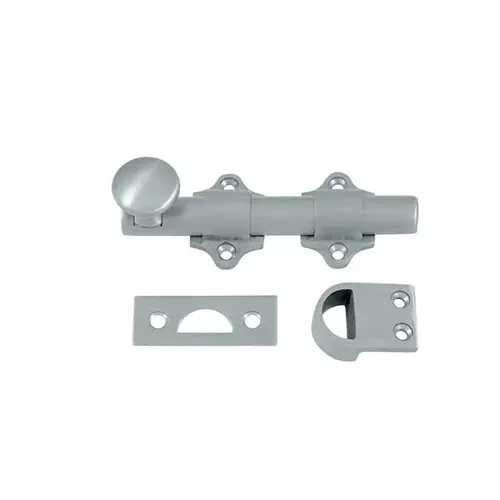

Ives Commercial 054B26D Ives Dutch Door Bolt, 1-1/8 Projection, Satin Chrome

Item #: 054B26D by IVES

Brand: Ives Commercial

UPC #: 044074087086

See reviewsSee reviews
See reviews summary
In Stock

$61.41

78.90 /each
SAVE UP TO 6.14
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 193 units available

Finish: Satin Chrome

QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Custom Quote

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
WARNING: This Product May Contain Chemicals Known to the State of California to Cause Cancer or Reproductive Harm. To Learn More Visit P65Warnings.ca.gov
Features

Color

Satin Chrome

Color Code

626/US26D

Package Qty

1

Base Material

Brass

Finish

Satin Chrome

Finish Description

Satin Chrome

Product Type

Door Accessory

Product Length

4-3/8 Inch

Product Width

1-5/8 Inch

Strike Type

Standard; Mortise; Universal

ADA Compliant

No

Finish Family

Satin Chrome

Included Components

Wood Screws; Standard Strike; Mortise Strike; Universal Strike

Product Material

Solid Brass

Bolt Size

4-3/8" x 1-5/8"

Standards

ANSI BHMA A156.16

Product Projection

1-1/8 Inch

Features

Chamfered Rod End Draws the Two Leaves of Door Tightly Together

Rod Length

4-1/4 Inch

Application

Dutch Doors

Warranty

1 Year

Rod Diameter

5/8 Inch

Function

Door Bolt

Bolt Throw

5/8 Inch

Series

Parts/Accessories

Manufacturer Parent

Allegion

Sub-Series

DTA_Surface_Bolts_Latches_Catches_ives_1

Pack Size

1

Material

Brass Bronze

Package Quantity

1

UL Listed

No

UNSPSC

46171503

MADE IN THE USA

No

Assembled Product Height

2 in.

Assembled Product Width

1.62 in.

GSA Approved

No

Assembled Product Length

4.25 in.

AbilityOne

No

TAA/BAA Compliant

Yes

Projection

1-1/8"

Dimension

4-1/4"

Manufacturer Warranty

Limited 1 year warranty

Hazardous Material

No

Finish code

US26D

No of inners

1

Product Overview
054Dutch door boltFeatures:
  • Practical, rugged, attractive bolt for application on dutch doors as well as other areas
  • Chamfered rod end draws the two leaves of door tightly together
  • Sufficient tolerance provided in strike opening to allow for misalignment of door leaves and also prevents binding of bolt
  • Decorative 1" diameter knob designed to facilitate bolt operation
  • Units packed with wood screws
  • Packed with Standard Strike (SS), Mortise Strike (MS) and Universal Strike (US)
Specifications: Certifications:
  • Meets ANSI/BHMA A156.16
Material substrate:
  • Made from solid brass
Dimensions: Throw:
  • 5/8"
Projection:
  • 1-1/8"
Half round rod:
  • 5/8"
Overall width:
  • 1-5/8"
Rod length:
  • 4-1/4"
Overall length:
  • specify 4-3/8"
  • (including knob)
Finishes: 605:
  • Description - Bright brass
  • Substrate - Brass
  • Finish - B3
606:
  • Description - Satin brass
  • Substrate - Brass
  • Finish - B4
612:
  • Description - Satin bronze
  • Substrate - Brass
  • Finish - B10
613:
  • Description - Oil rubbed bronze
  • Substrate - Brass
  • Finish - B10B
619:
  • Description - Satin nickel
  • Substrate - Brass
  • Finish - B15
625:
  • Description - Bright chrome
  • Substrate - Brass
  • Finish - B26
626:
  • Description - Satin chrome
  • Substrate - Brass
  • Finish - B26D
