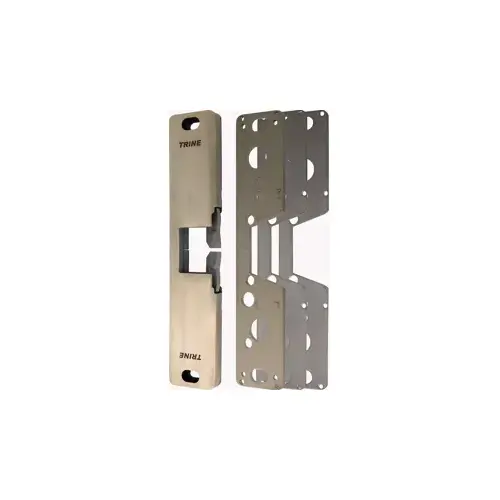

Trine 4850-32D 4850 1/2" Electric Strike for Surface Mounted Rim Exit Devices, Satin Stainless Steel
Item #: 4850-32D by Trine
See reviewsSee reviews
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See How Watch Now
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
Finish
Satin Stainless Steel
Configuration
Centered
Color Code
630/US32D
Function
Electric Strike
Amp Draw
.509-.405-.215 / .556.253
Faceplate Size
9 In. X 1-3/4 In.
Keeper Size
Custom
Operating Voltage
12VACDC/24VACDC
Package Qty
1
Base Material
Stainless Steel
Switch Type
None
Material
Stainless Steel
Dimensions
1/2" Thick x 1-3/4" Wide x 9" High
Length
9 in.
Width
1.75 in.
Color
Satin Stainless Steel
Pack Size
1
Door Locks & Knobs Product Type
Strike Plates
Strikes & Filler Plates Type
Electric Strike
Finish Description
Satin Stainless Steel
Product Type
Electric Strike
UNSPSC
46171500
Warranty
1 Year From Date of Purchase.
Aluminium Bottle Contents
Swinging
ProductType
Automatic;Manual
Product Height
9 Inch
Product Length
1/2 Inch
Product Width
1-3/4 Inch
ADA Compliant
No
Finish Family
Stainless Steel
Included Components
(1) 1/4" and (2) 1/16" Spacers Plate
Standards
Grade 1
Function Family
Electric Strike
Features
The Electric Strike Cavity is Completely Open Which Means the 4850 Allows for An Incremental Depth Up to a 1" Throw; Comes With Trines Patented 6-Pin Anchoring System; Contains a One Piece Locking Mechanism With One Solenoid
Voltage
24 VDC
Mounting Type
Surface Mount
For Use With
Rim Panic Exit Devices
Strike Opening
1-1/2" x 1-1/8"
Strength
1500 (Static) lb
Current Draw
0.218A at 12DC; 0.290A at 16DC; 0.195A at 24DC
Series
4800 Series
Manufacturer Parent
Trine Access Technology
Sub-Series
4850-32D
Grade
Grade 1
Handing
Non-Handed
Alternate Part Number-1
143424
Throw
1"
Faceplate Style
Round Corner
Lock Category
Rim Exits
Fail Status
Field Selectable
Product Overview
48501/2" Surface mounted strike for Rim Panic Devices.
The most flexible electric strike for use with surface mounted rim exit devices with up to 1" (6 different thicknesses altogether).
Need a fire rated surface mount strike you can install every day? Use the 4800F
Features:- 1/2" thick Surface Mount that comes with a 1/4" and now with two (2) 1/16" Spacers (replaces the 1/8" spacer) -- the most versatile rim panic strike NOW provides the flexibility of 6 different sizes!
- Cavity is completely open -- which means the 4850 allows for an incremental depth up to a 1" throw -- competitor backplates do not allow for this versatility.
- Built-in electronics automatically allow 11 thru 28 DC Voltage input -- with surge and kickback protection.
- Comes with Trines Patented 6-Pin Anchoring System.
- Contains a one piece locking mechanism with one Solenoid -- less parts mean less problems.
- Fail-safe/Fail-secure (field selectable).
- BHMA Grade 1 Electric Strike -- 1,000,000+ Life cycles -- 1,500+ lbs. Holding Force.
- No cutting or worrying about voltage means you are always prepared.
- Low Current Draw Available 4850PoE for 12DC and 4850LCD for 24DC.
- For a fire rated rim panic strike use the 4800F.
- Voltage (DC Only) - 12DC
- Pull In/Holding Current/Amps - 0.500 / 0.178
- Duty - Intm./Cont.
- Sound - Silent
- Voltage (DC Only) - 16DC
- Pull In/Holding Current/Amps - 0.385 / 0.131
- Duty - Intm./Cont.
- Sound - Silent
- Voltage (DC Only) - 24DC
- Pull In/Holding Current/Amps - 0.255 / 0.084
- Duty - Intm./Cont.
- Sound - Silent
- Satin Stainless Steel - BHMA630
- Bright Brass -- BHMA605
- Satin Bronze -- BHMA612
- Dark Bronze Powder Coat
- Satin Brass -- BHMA606
- Stainless Steel -- BHMA651
- Black Powder Coat Black Powder Coat *NEW*
