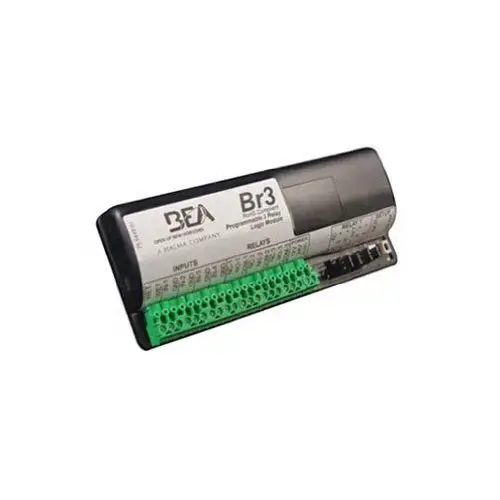

BEA 10BR3-X Logic Module, 13 Programmable Logic Functions, 3 Relays

Item #: 10BR3-X by BEA

See reviewsSee reviews
See reviews summary
In Stock

$148.20

/each
SAVE UP TO 14.82
Buying in bulk
QUICK SHIPPING*Usually ships in 1 business dayIn stock: 741 units available
QTY
–
+
+ Add to Wishlist
Buy in Bulk & Save - See HowWatch Now
Get Volume Pricing

Shop with Confidence

30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.

Safe Payment
Features

Environment

Indoor

Operating Voltages

12/24 VDC/AC

Package Qty

1

Product Type

Access Control Part/Accessory

Voltage

12/24 V

Application

Wireless MC25; Wireless Day/Night Mode; Wireless Actuators; Multiple Doors Per Transmitter; Limited Mobility; Wireless Sequencing; Retrofit Applications; Universal Mode

Operating Temperature

-15° to 150°F

Product Height

1 Inch

Product Length

5.2 Inch

Product Width

2.2 Inch

ADA Compliant

No

Product Material

ABS Plastic

Contact Ratings

Relay 1 (DRY) 3 A @ 24 VAC / 30 VDC; Relay 1 (WET) 1 A; Relay 2 3 A @ 24 VAC / 30 VDC; Relay 3 1 A @ 24 VAC / 30 VDC

Standards

FCC; IC

Function Family

Part/Component

Features

Power Consumption 30 – 130 mA; DRY Output; Relay Hold Time Up to 60 Seconds per Relay; Delay Between Relays Up to 60 Seconds per Relay with 1/4, 1/2 and 3/4 Second Options

Series

Parts/Accessories

Manufacturer Parent

Halma

Sub-Series

10BR3X

Product Overview
BR3-XProgrammable 3-Relay Logic Module

BEA’s BR3-X provides both simple and advanced logic controls.

Functions include: timer, ratchet/latching, inhibitor, 2 relay sequencer + inhibitor, 2 relay sequencer + door position deactivation timer, 3 relay sequencer + “1-shot”, 3 relay sequencer with “independent relay”, interlock timer, interlock ratchet / latching, 2 way 2 relay sequence, normally locked restroom, normally unlocked restroom, 3 relay sequencer + “day / night mode”.

Common uses for the Br3-X include automatic pedestrian doors, access control, industrial automation and single-occupancy restrooms.


Features & Benefits
  • Versatility with 13 programmable logic functions for the BR3-X
  • Two-button programming combined with dual seven-segment display provides simple setup
  • Two 3-AMP relays and one 1-AMP relay, all with built-in surge suppression, eliminates the need for external components when installing some electric locking devices
  • WET output with AC / DC voltage for powering an electric locking device directly from the module
