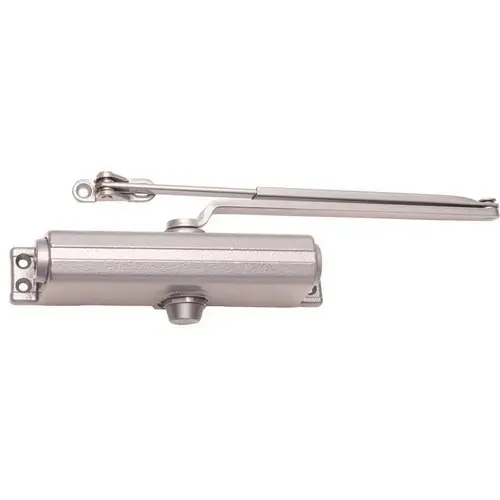

LCN 1261-REG AL Regular Arm Adjustable 1-5 Door Closer with TBSRT Thru Bolts 689 Aluminum Finish
Item #: 1261-REG AL by LCN
UPC #: 840067623343
See reviewsSee reviews
30 Days Easy Return. We are the largest supplier of the most adaptable, personalized hardware in the industry. We work hard to ensure you're satisfied with our products.
Features
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
Grade
Grade 1
Cover
No
Type
Surface
Hand
Non-Handed
Color
Aluminum
Color Code
689/US28
Mounting Style
Regular or Top Jamb
Hold Open
Without Hold Open
Closer Size
Adj. 1 to 5
BAA Qualified
Yes
Package Volume
0
Cold Weather Fluid
Yes
Degree Swing
180 Deg.
Mounting Location
Push or Pull Side
Package Qty
1
Base Material
VARIES
Pack Size
1
Builders Hardware Product Type
Door Closer
Certifications and Listings
ADA Compliant, ANSI Certified, UL Certified
Commercial/Residential
Commercial
General Color Family
Metallics
General Material
Cast Iron
Hardware Finish Family
Metal
Maximum Door Range (deg.)
120
Product Depth (in.)
15.75
Product Height (in.)
4.375
Product Width (in.)
6.125
Mounting
Wall Mount
Warranty
30-year warranty
UNSPSC
30171514
Finish
Aluminum
Dimension
9-15/16" x 2-7/8" x 2-1/2"
Manufacturer Warranty
Limited 1 year warranty
Closer Type
Surface Mounted Closer
Hazardous Material
No
Series
1260 Series
Mounting Type
Hinge (Pull Side); Top Jamb (Push Side); Parallel Arm (Push Side)
Application
Most Common Commercial Foot Print
Spring Size
Adjustable 1-5
Function
REG-Regular Arm
Door Thickness
1-3/4 inch
Maximum Door Opening
120° (Hinge Pull, Top Jamp Push); 130° (Parallel Arm)
Finish Description
Aluminum Painted
Product Height
1-7/8 Inch
Product Length
9-15/16 Inch
Product Width
2-7/8 Inch
ADA Compliant
YES
Finish Family
Aluminum
Closer Arm Construction
Forged Steel
Product Material
Cast Iron
Closer Cover
Slim Plastic Cover
Fasteners
Self Reaming and Tapping Screws
Standards
Grade 1 - ANSI A156.4, UL 10C
Closer Arm Type
Regular Arm
Closer Clearance
2-7/8" (Hinge Pull); 4" (Parallel Arm Push); 5-1/2" (EDA and Cush-n-Stop mounting)
Closer Fluid Temperature Range
-30°F to 120°F
Closer Piston Diameter
1-3/8 Inch
Closer Pinion Diameter
5/8 Inch
Mounting Hole Size
3/4" x 9-1/16"
Templating
Peel-n-Stick
Product Type
Door Closer/Holder/Stop
Minimum Hold-Open
90° (EDA); 85° (Cush Arm)
Manufacturer Parent
Allegion
Maximum Hold-Open
120° (EDA); 110° (Cush Arm)
Sub-Series
1261-REG
Material
Cast Iron
Package Quantity
1
UL Listed
Yes
Hinge Type
Door Closer
Door Handing
Non Handed
Interior/Exterior
Interior/Exterior
Hardware Included
False
Security Grade
ANSI Grade 1
Adjustable
True
Mount Type
Surface
MADE IN THE USA
Yes
GSA Approved
No
AbilityOne
No
TAA/BAA Compliant
Yes
Lever/Pull Included
True
Hex Key Dogging
False
Product Overview
Regular Arm Door Closer, Aluminum
The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.
Combines features of both the 1070 and 1370 LCN Series.
The 1260 Series is a versatile and economical cast iron clsoer with dual mounting capabilities. The 1260 has adjustable spring sizes 1-5 and mounts to the most common commercial footprint.
